Strata EziARC205 200A MMA (Stick) ARC/Lift TIG Inverter Welder (15A Plug)

Strata EziARC205 200A MMA (Stick) ARC/Lift TIG Inverter Welder (15A Plug)

SKU:

📑 Download Product Brochure

Regular price $575.00 ex. GST
Regular price Sale price $575.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100

View full details

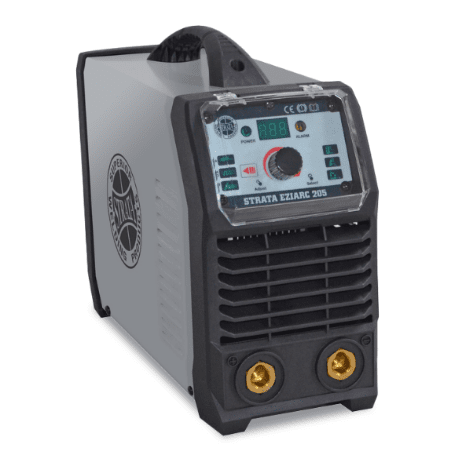

Strata EziArc205 - 200A Inverter MMA/Lift TIG Welder

Empower your welding projects with the Strata EziArc205, a versatile and user-friendly 230V machine featuring the latest IGBT technology. Weighing only 2.8kg, this powerhouse is designed for ease of use and portability, making it an excellent choice for onsite work and various engineering applications. The EziArc205 combines IGBT inverter technology with advanced features such as hot start, anti-stick technology, and MMA VRD protection mode for increased safety. Whether you're engaged in MMA welding or Lift TIG welding for aesthetically important projects, this machine delivers superior performance with dynamic arc characteristics.

Key Features:

  • IGBT Inverter Technology: Ensures a smooth and stable welding output for precision.
  • Microprocessor Control System: Provides superior and dynamic arc characteristics.
  • Lightweight & Compact Design: Weighing only 2.8kg, it's easy to carry and ideal for portable applications.
  • Extreme Stress Testing: Production tested to 440V for rugged reliability in demanding work environments.
  • Industrial IP23 Casing: Resists damage, moisture, and corrosion, enhancing durability.
  • Adjustable Arc Force and Hot Start: Enables good control and ease of use during MMA welding.
  • MMA VRD Protection Mode: Enhances safety during welding operations.
  • Lift TIG Welding Operation: Ideal for precision in aesthetically important welding jobs (Optional torch available).
  • Digital Current Display Meter: Accurate pre-setting and feedback of welding parameters and output.
  • High-Quality Electronic Components: Ensures durability and reliability in various welding applications.
  • Intelligent Protection System: Equipped with temperature, voltage, and current sensors for increased reliability and safety.
  • Generator Compatibility: Designed to work with a generator power supply with protection from power surges.
  • Included Accessories: Comes with a 4m MMA lead with a heavy-duty twist-lock electrode holder and a 3m earth lead with a heavy-duty earth clamp.

Specifications:

  • Dimensions: 410x146x278mm
  • Weight: 2.8kg
  • Input Power Supply: 230V AC 15A 50/60Hz
  • Input Power Tolerance: 230±20%V
  • Maximum Input Current: 46A
  • Generator Capacity: 11KVA
  • MMA Current Output: 10A-200A
  • MMA O/C Voltage: 70V
  • MMA/TIG Duty Cycle: 200A@10%, 130A@60%, 100A@100%
  • Lift TIG Current Output: 10-200A
  • Lift TIG Duty Cycle: 200A@23%, 145A@60%, 110A@100%
  • Insulation Class: IP23
  • Power Efficiency: 80%
  • Power Factor: 0.65
  • Standards: EN60974-1:2012
  • MMA Rod Size: 1.6-5.0mm
  • Warranty: 24 months
