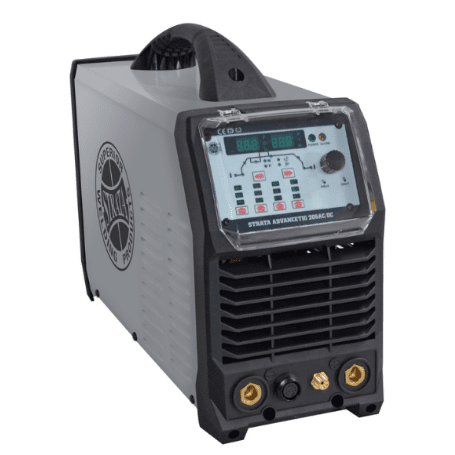

Strata AdvanceTig205ACDC - Dynamic 200A AC/DC Inverter PFC TIG/MMA Welder

Experience superior welding performance with the Strata AdvanceTig205ACDC, a robust 200A AC/DC Inverter PFC TIG/MMA Welder. This state-of-the-art machine integrates the latest IGBT and active PFC technology, providing reliability, ease of use, and energy efficiency. Built tough with IP23 protection and high-quality, over-specified components, it is designed for rugged New Zealand workshops and on-site tasks.

Key Features:

  • IGBT Inverter Technology: Ensures a smooth and stable welding output, increasing reliability.
  • Active PFC Technology: Enhances duty cycle and energy efficiency for optimal welding performance.
  • Multi-Voltage Input: Operates with a wide range of input voltage, suitable for various environments and long extension leads.
  • Industrial IP23 Casing: Resists damage, moisture, and corrosion, ensuring durability.
  • Microprocessor Control System: Provides superior and dynamic arc characteristics for precise welding.
  • Compact & Lightweight Design: Ideal for portable applications, offering ease of use in diverse work settings.
  • Extreme Stress Testing: Endures production stress tests up to 440V, ensuring rugged reliability.
  • Adjustable Arc Force, Hot Start & Automatic Anti-Stick Control: Greater control and ease of use for MMA welding.
  • Lift TIG and HF Start Modes: Offers versatility when welding around sensitive electronic equipment.
  • Electronic HF TIG Arc Ignition: Contamination-free and easy arc starting with low EMF interference.
  • 2T/4T Multi-Level Trigger Control Modes: Customizable trigger modes for various welding preferences.
  • Dual Digital Display Meters: Provides accurate pre-setting and feedback of welding parameters and output.
  • Durable & Reliable Construction: Utilizes high-quality and over-specified electronic components for longevity.
  • Intelligent Protection System: Equipped with temperature, voltage, and current sensors for increased reliability and safety.
  • Generator Compatibility: Designed to work with a generator power supply with protection from power surges.
  • Multi-PCB Construction: Economical for service and repair compared to a single PCB design.
  • Quick Connect Inlet Gas Fitting: Enhances convenience for easy setup.
  • Accessories Included:
    • 3m Earth lead with a heavy-duty earth clamp
    • 4m MMA lead with a heavy-duty twist-lock electrode holder
    • Strata Professional PRO26 25ft TIG torch with thumbwheel remote control
    • 2-stage flowmeter
    • Argon gas regulator
    • 4m gas hose
    • Gas inlet quick connector
    • Hose clamps.
  • Optional Wired/Wireless Foot Control Available.

Specifications:

  • Dimensions: 492x189x350mm
  • Weight: 15kg
  • Input Power Supply: 230V AC 15A 50/60Hz
  • Input Power Tolerance: 90V-275V AC
  • Maximum Input Current: 32A
  • Generator Capacity: 8KVA
  • MMA Current Output: 5A-200A
  • MMA O/C Voltage: 67V
  • MMA/TIG Duty Cycle: 200A@22%, 140A@60%, 110A@100%
  • TIG Current Output: 5-200A
  • TIG Duty Cycle: 200A@22%, 140A@60%
  • AC TIG Duty Cycle: 200A@60%, 155A@100%
  • TIG Upslope/Down Slope Adjustment: 0-10S
  • TIG Gas Post Flow/Pre Flow Adjustment: 0-2/0-10S
  • TIG Pulse Frequency: 0.5-200Hz
  • TIG Pulse Width Range: 5-95%
  • AC TIG Waveform: Square wave, Sine wave
  • AC Frequency Adjustment: 50-250Hz
  • Insulation Class: IP23
  • Power Efficiency: 80%
  • Power Factor: 0.99
  • Standards: EN60974-1:2012
  • MMA Rod Size: 1.6-5.0mm
  • Warranty: 36 months
