Rotabroach Element 50 Low Profile Magnetic Drill

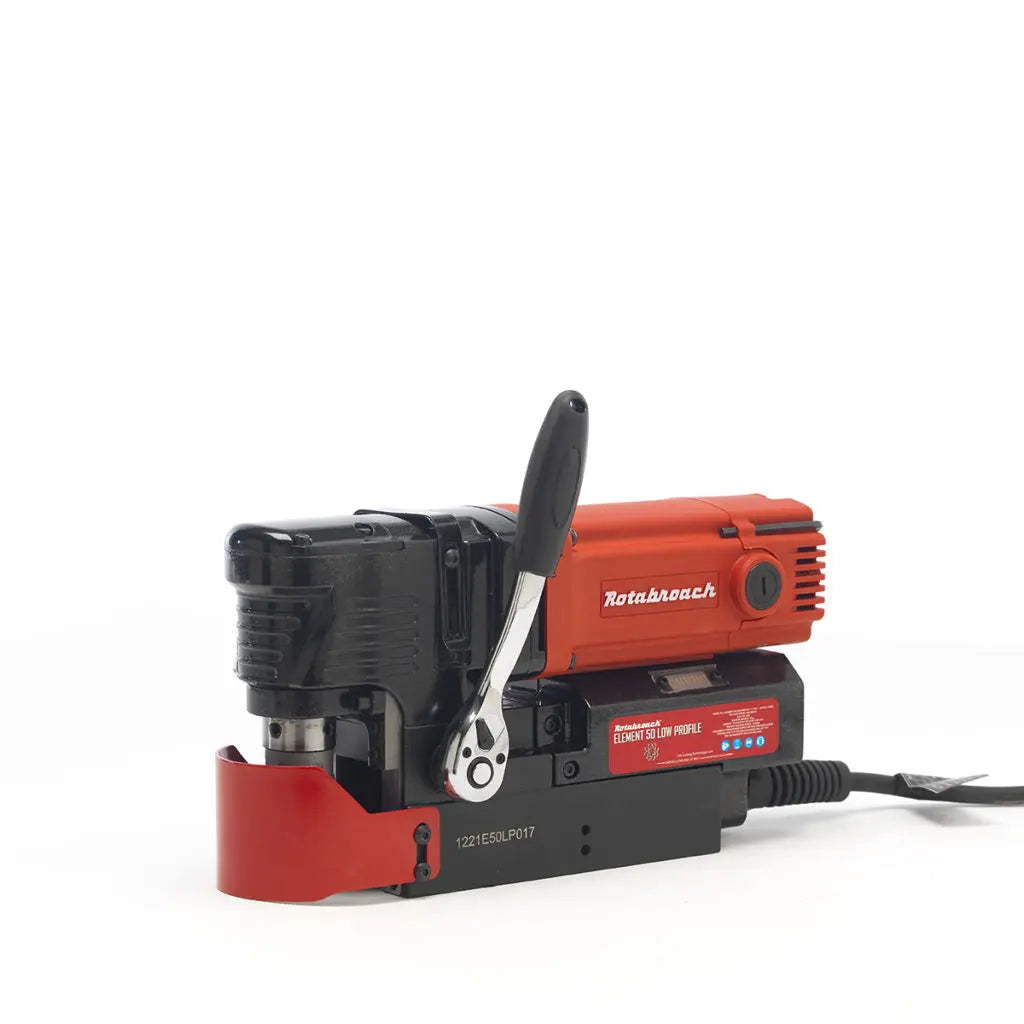

The Rotabroach Element 50 Low Profile Magnetic Drill stands out as the largest capacity low profile mag drill available in the market. With a robust 1200w motor encased in dimensions of just 179mm/100mm/329mm, this drill is a testament to the combination of power and compactness. Its design ensures accessibility to areas that might be out of reach for larger models, all the while delivering uncompromised performance. The drill can cut to a depth and diameter of 50mm. It's designed with a quick-release interchangeable handle for enhanced convenience. The inclusion of internal cooling and cabling ensures minimized downtime and reduced risk of damage. The drill is also equipped to countersink up to 30mm, albeit with the need for an extension arbor (rd32059). Within its lightweight 11kg frame, the Element 50 Low Profile boasts Rotabroach’s innovative Cutsmart technology. This feature is engineered to protect both the motor and the cutter, thereby extending the tool's lifespan and boosting efficiency. The drill's design is a culmination of Rotabroach’s commitment to quality and reliability, ensuring top-tier performance in every use.

Key Features of the Rotabroach Element 50 Low Profile Magnetic Drill

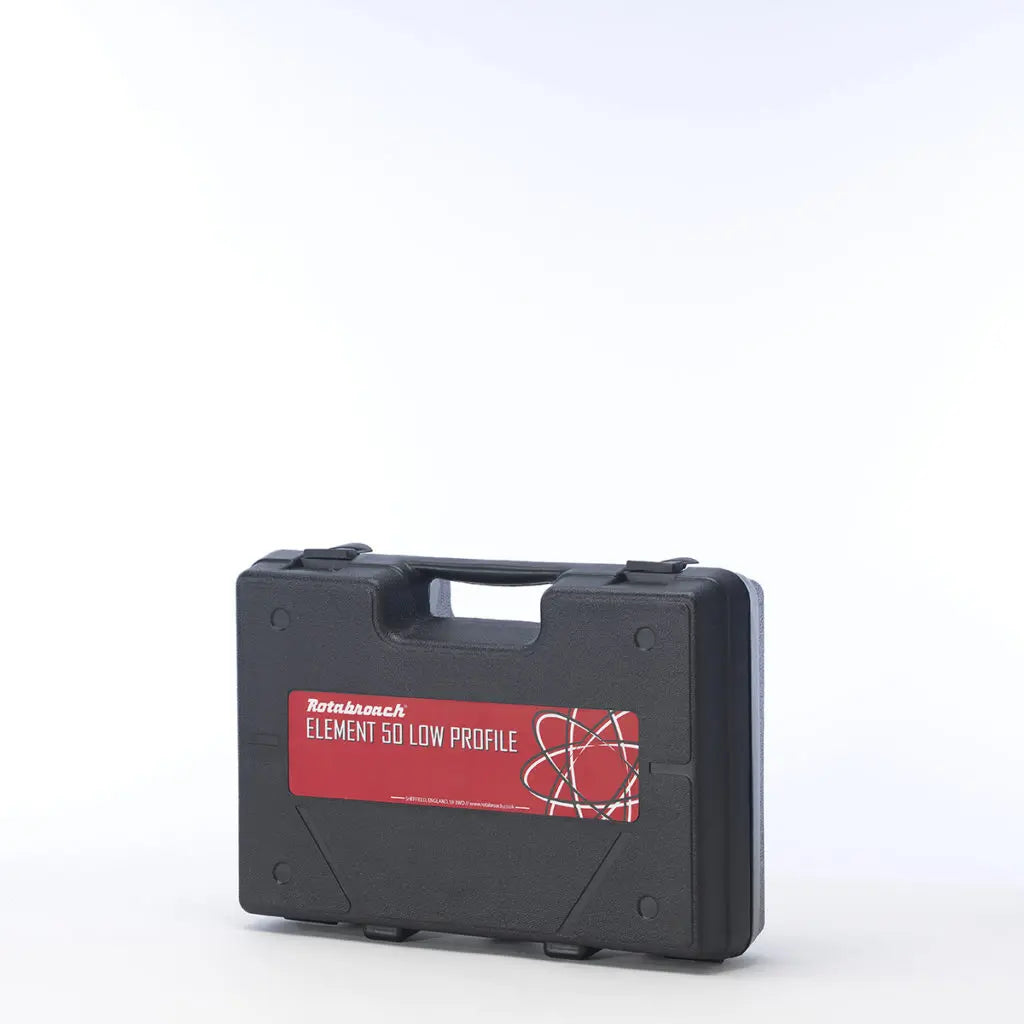

The Rotabroach Element 50 is celebrated as the market's largest capacity low profile mag drill with a maximum capacity of 50mm. It offers a cutting diameter and depth of 50mm. The drill is powered by a 1200w motor that comes with a variable, 6-speed setting. Rotabroach’s Cutsmart technology is integrated into the design, prioritizing protection for both the motor and cutter to prolong the tool's life. This drill is adept at countersinking up to 30mm. Features such as internal cabling mitigate the risks of damage and reduce potential downtime. The quick-release interchangeable handle enhances the drill's accessibility, allowing operations from either side. Internal cooling mechanisms ensure the drill remains cool, facilitating prolonged usage. Despite being the smallest mag drill in the element range with a height of just 179mm, it excels in challenging environments, boasting an extremely compact size of 514mm. Weighing in at a mere 11kg, the drill ensures easy handling. The package includes a carry case, fixed guard, safety strap, coolant bottle, 4mm hexagonal wrench, ratchet handle, and safety goggles.

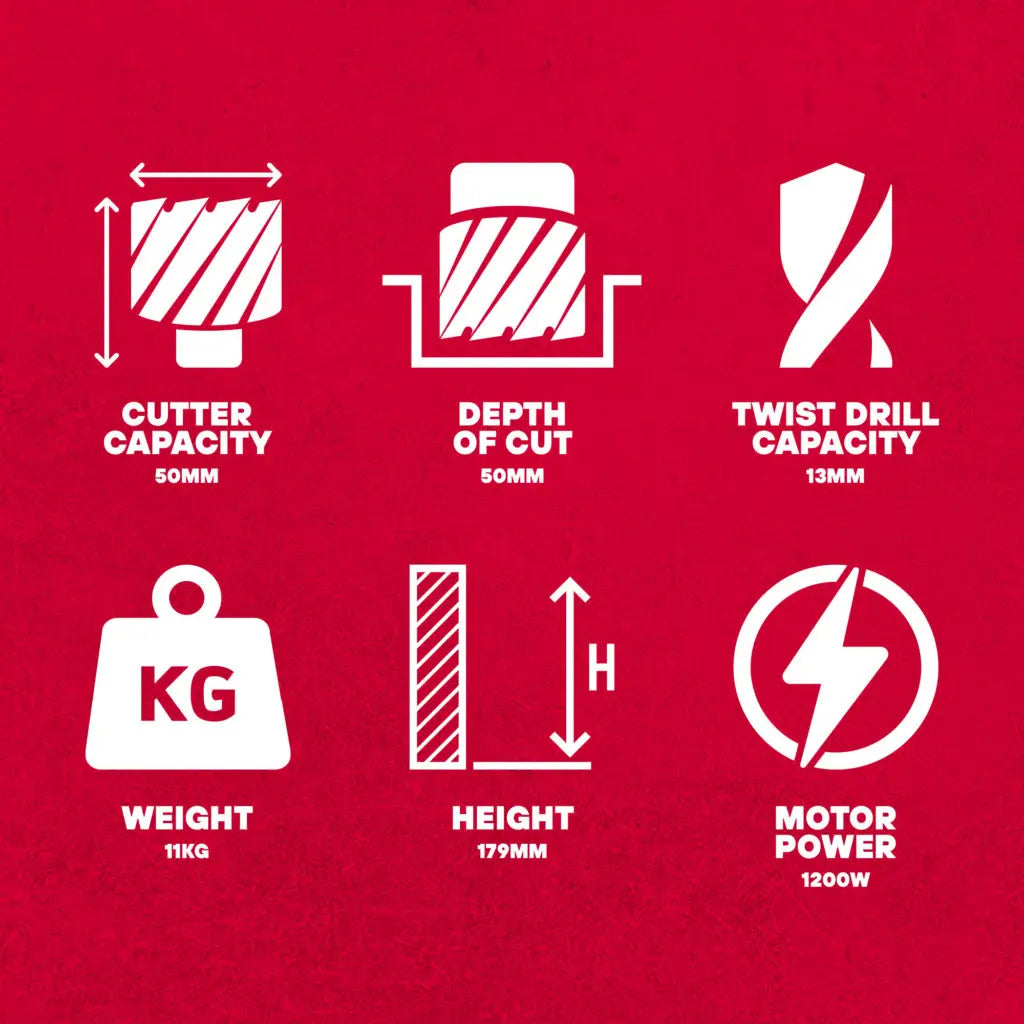

Technical Specifications

  • Cutter Capacity: 50mm
  • Depth of Cut: 50mm
  • Countersink: 30mm
  • No Load Speed: 250-500RPM
  • Motor Specification: 1200W
  • Magnet Adhesion: 10000N
  • Dimensions (LxHxW): 334x179x100mm
  • Magnet Size: 192x82mm
  • Weight: 11kg
  • Motor: 110/230V
  • Stroke: 62mm

Experience unmatched drilling capabilities with the Rotabroach Element 50 Low Profile Magnetic Drill, a fusion of power, innovation, and precision.
