Evolution Heavy Duty Metal Cutting Mitre Chop Saw (S355MCS)

Evolution Heavy Duty Metal Cutting Mitre Chop Saw (S355MCS)


Regular price $2,100.00 ex. GST
Regular price Sale price $2,100.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100

World First TCT Metal Cutting Mitre Saw. Evolution S355MCS

Introducing the Evolution S355MCS Metal Cutting Mitre Saw, the world's first 355mm Steel Cutting Mitering Chop Saw. This heavy-duty saw is equipped with Evolution Power Tools' "S" series motor, making it the most powerful and versatile saw offered by the company. The S355MCS provides precision and accuracy with the added ability to swivel the cutting head +/- 46° for accurate Mitre cuts.

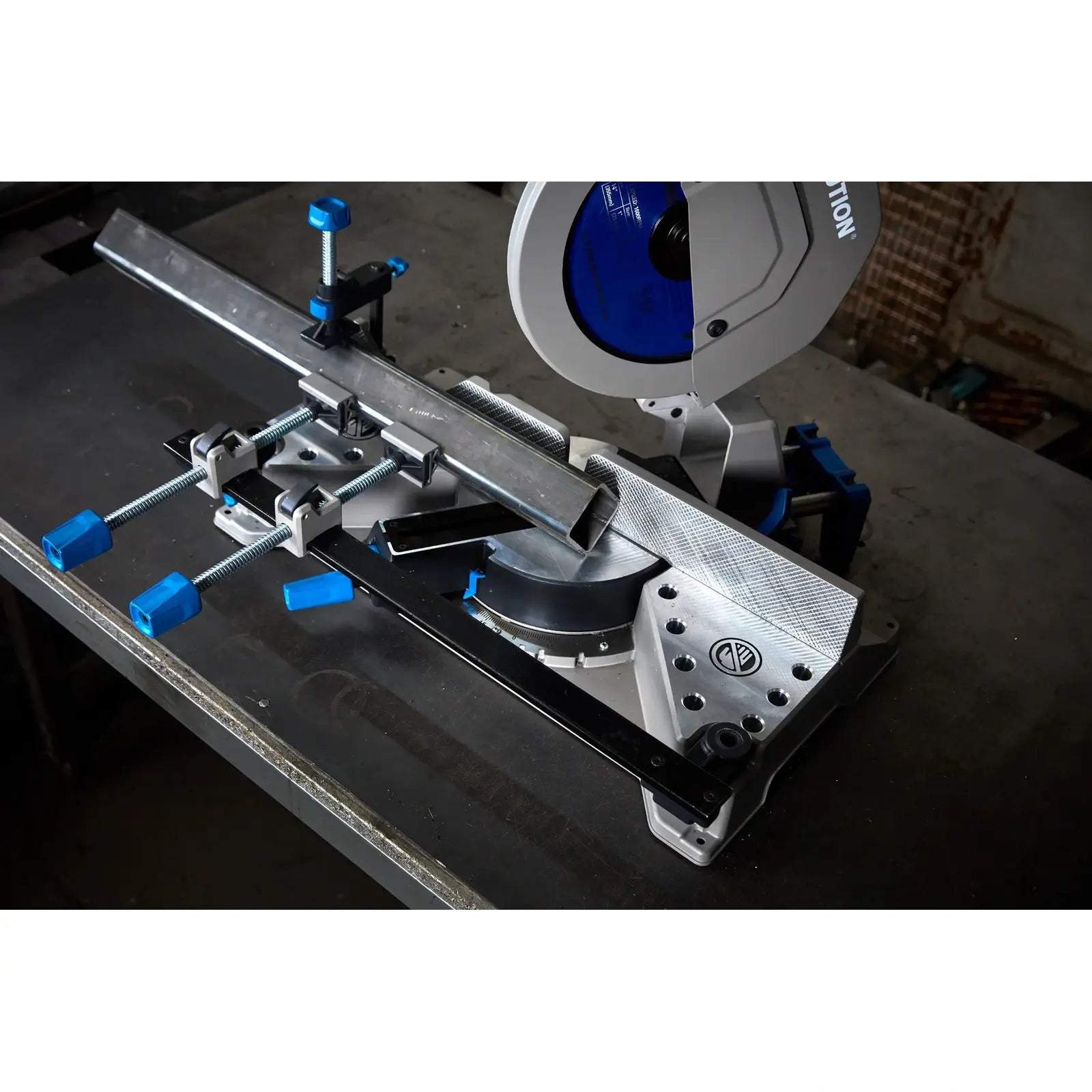

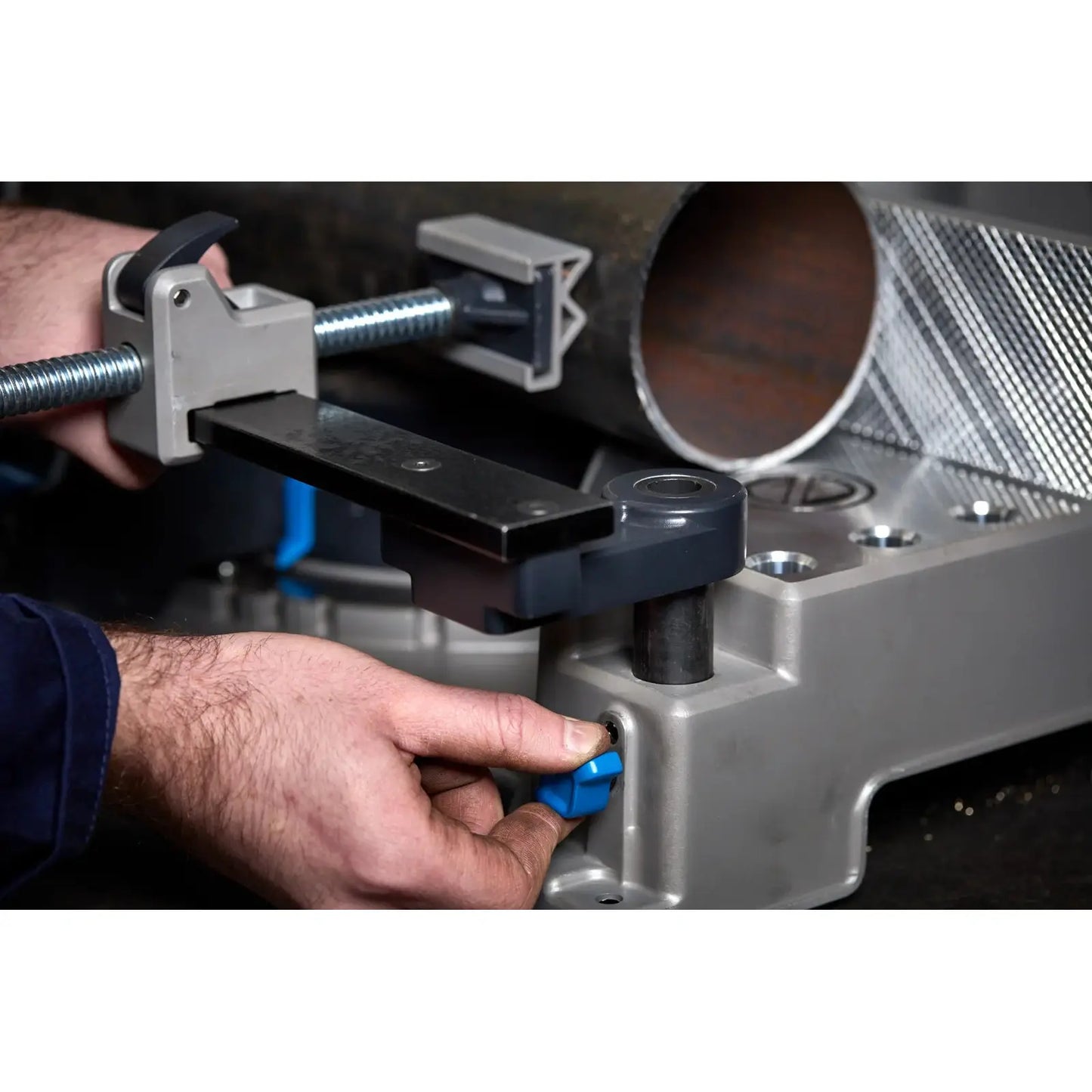

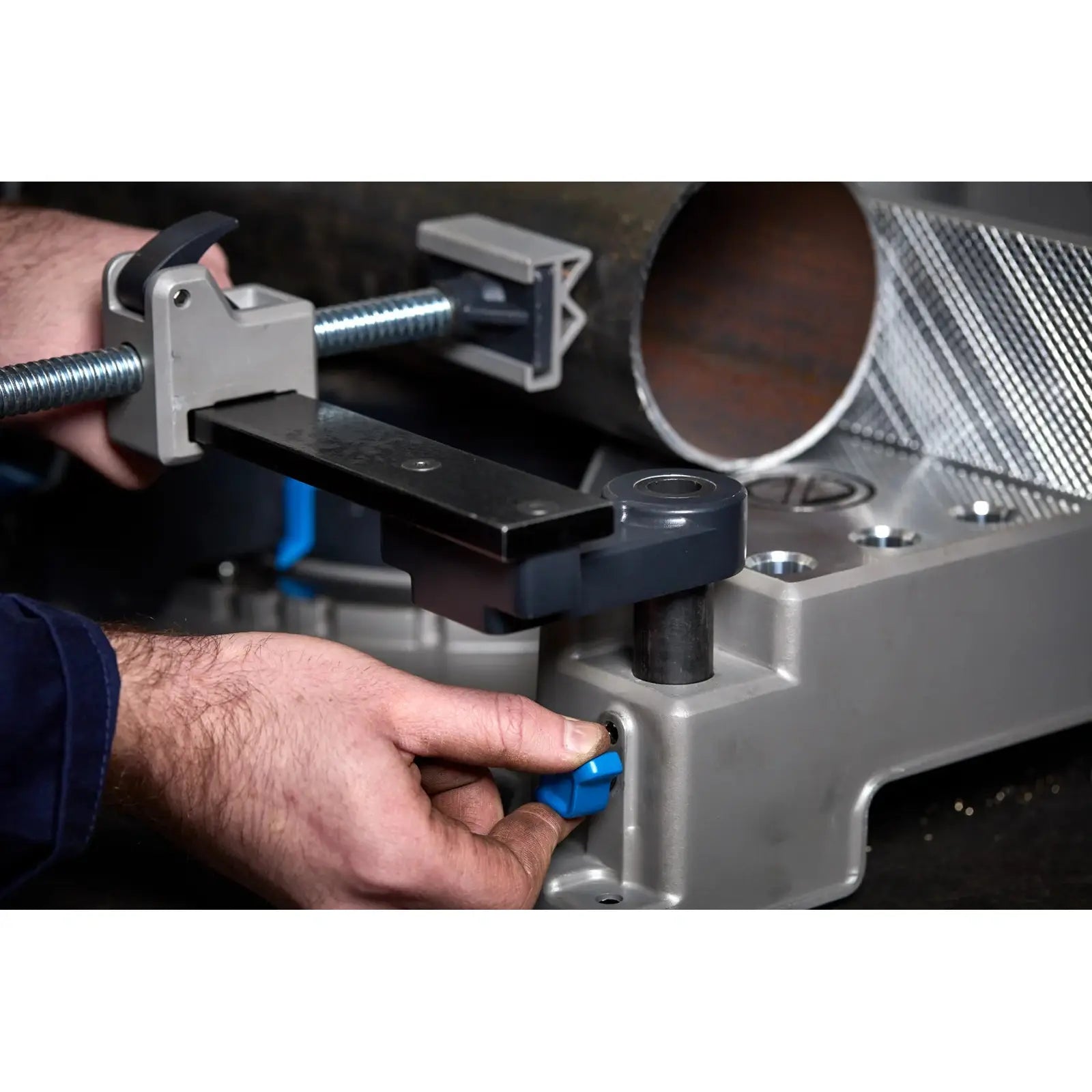

This steel-cutting mitre saw is designed with safety in mind. It features a Quick-release Top Clamp with a V-block adapter, as well as Two Quick Release Acme-threaded Front clamps with V-block adapters, giving you the ability to adjust your clamping position vertically, horizontally, and forward/backward with positive stops on the vertical posts and thumb screws to set and secure. This ensures that your workpiece is securely clamped closer to the blade, providing you with the highest level of confidence and safety while cutting steel.

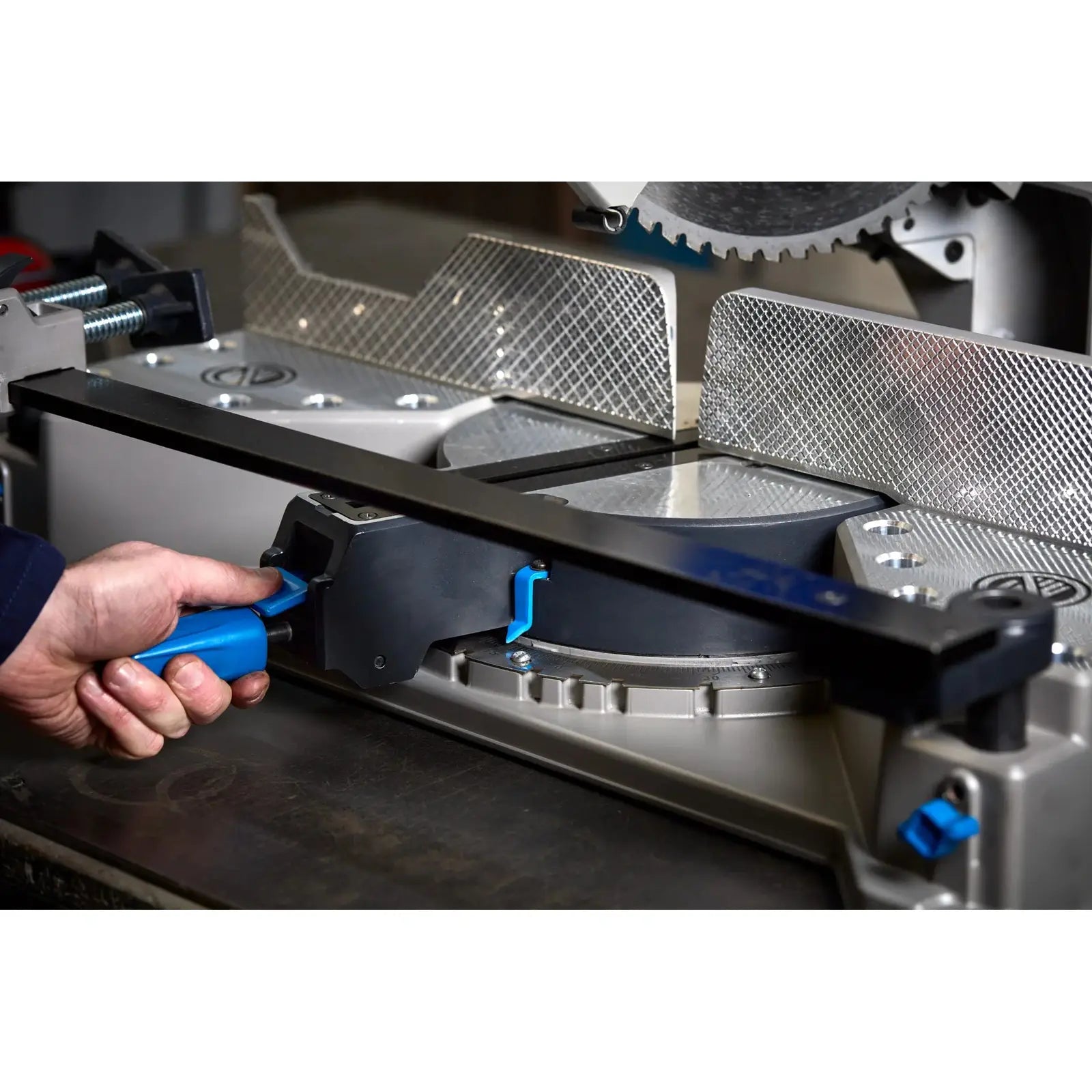

The S355MCS also comes with Positive Stops at 0°, 15°, 22.5°, 30°, & 45°, as well as micro-adjust ability, so you can dial in any angle you need. This unique feature allows you to rotate the entire cutting head of the saw, keeping your entire workpiece straight on the bench while making angled cuts. Additionally, this saw can accommodate a wide range of work materials, providing the highest confidence and safest steel-cutting experience ever.

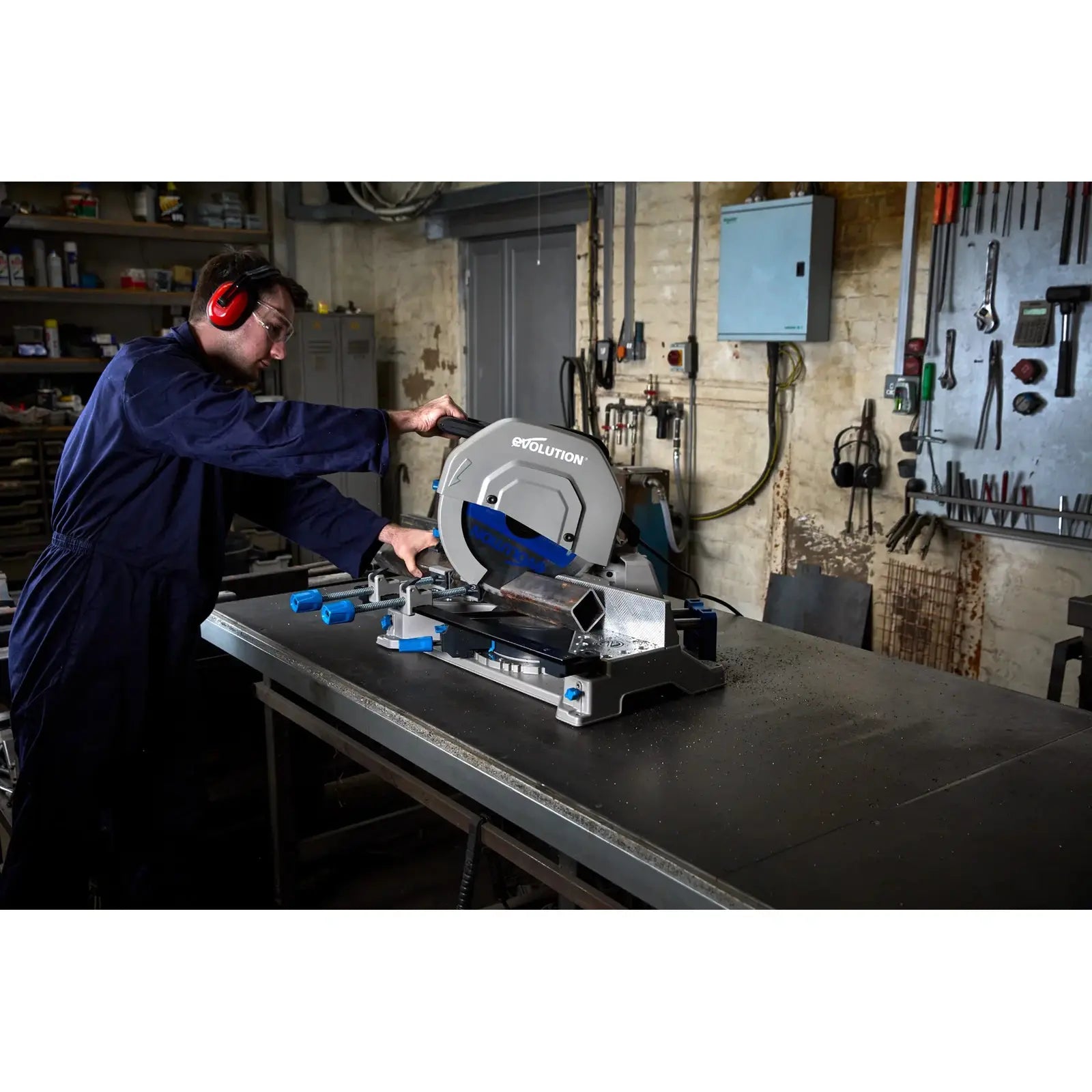

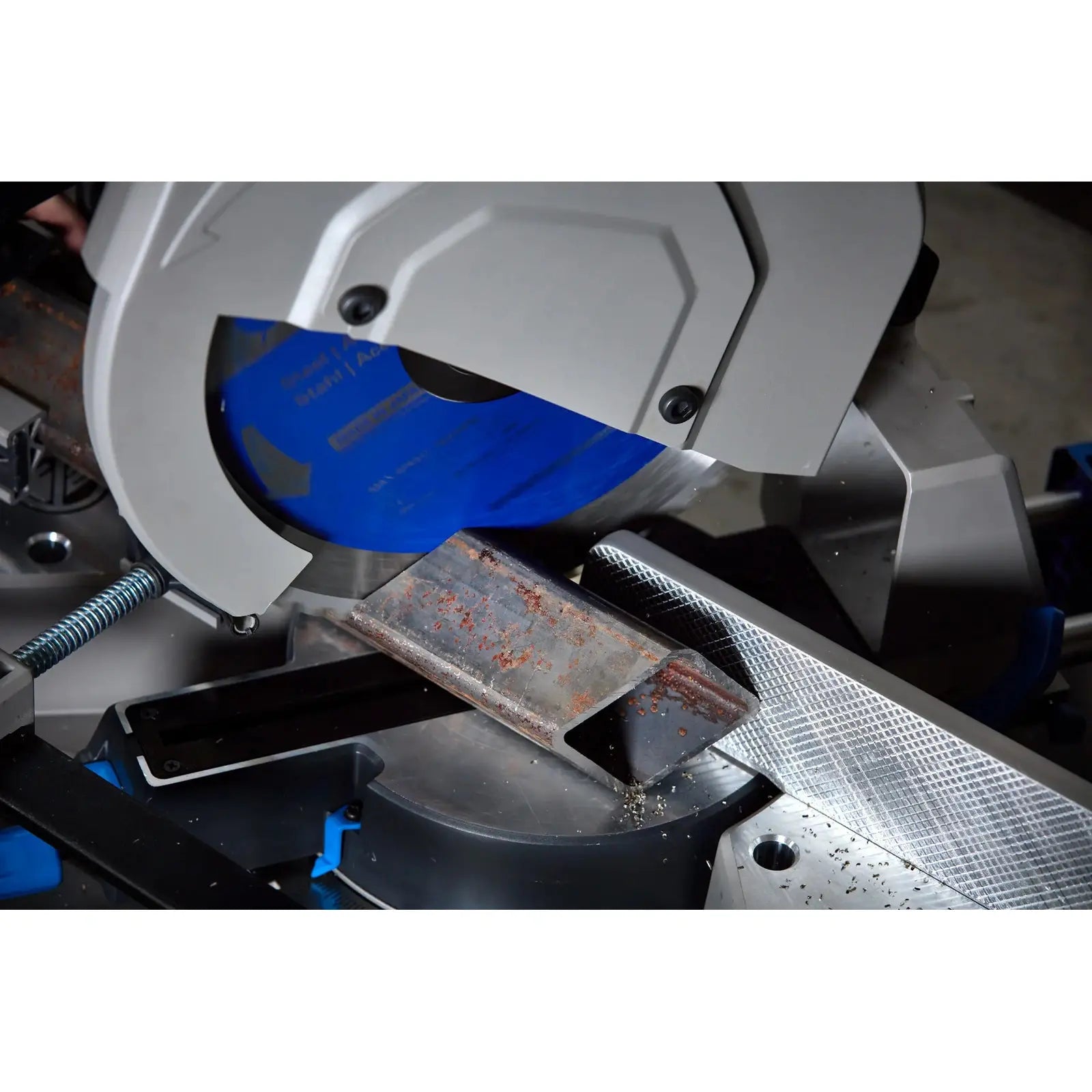

If you need cutting flexibility beyond the standard 90° cuts and angles that a traditional chop saw provides, the S355MCS provides the widest range of steel-cutting options that allow you to cut up to 46 degree angles in either direction. The Mitering capabilities of the S355MCS make mitre cutting easy with less fussing around with your work material. This saw is also an all-rounder with unrivaled abilities over both a chop saw and any competitor product when considering the breadth of materials and cross-section capability of this machine.

Compared to traditional miter saws, the S355MCS operates at a slower cut-speed of 1,550 RPM, which is ideal for cutting harder materials like steel to ensure your safety and confidence while producing the highest quality finished cuts.

In summary, the Evolution S355MCS Metal Cutting Mitre Saw is the perfect choice for those who require an enhanced cutting experience, larger cross-cut capacity, and the ability to cut precision mitres in any length workpiece. Whether you have limited workshop space or work with long and large work materials, the S355MCS provides unparalleled performance, precision, and safety.


  • Motor (240V 50Hz): 2200W
  • Speed No Load: 1550 min-1
  • Max. Bevel (Left): +/- 46°
  • Cable Length: 3m
  • Blade Dia.: 355mm
  • No. of Teeth: 66
  • Bore: 25.4mm / 1 In.
  • Kerf: 2.4mm
  • Mild Steel Plate (Max Thickness): 12mm
  • Stainless Steel Plate (Max Thickness): 5mm
  • Square Tube at 90° (Mild Steel): 120 x 120mm
  • Square Tube at 45° (Mild Steel): 100 x100mm
  • Rectangle Tube at 90° (Mild Steel): 100x 165mm
  • Rectangle Tube at 45° (Mild Steel): 100 x 110mm
  • Round Tube at 90° (Mild Steel): Ø 120mm
  • Round Tube at 45° (Mild Steel): Ø 110mm
  • Minimum Cut Off Piece Length: 8 mm
  • Packaging Dimensions: 450 x 760 x 584mm
  • Product Dimensions: 410 x 530 x 310mm
  • Product Weight: 35 kg
  • Packaged Weight: 40 kg


  • Instruction Manual
  • 66 Tooth Mild Steel TCT Blade
  • Double Ended 5mm/8mm Hex Key
  • Cutting Head Assembly
  • Base Table Assembly
  • Rear Stabilising Leg
  • QR Top Clamp
  • Rail Bracket & Fixings
  • V-Blocks x3
  • QR Front Clamps x 2
