Maximize Precision and Power with the Euroboor ECO.100S+/T - The Ultimate 4 Gear Variable Speed Mag Drill

Introduction: Unmatched Drilling Efficiency

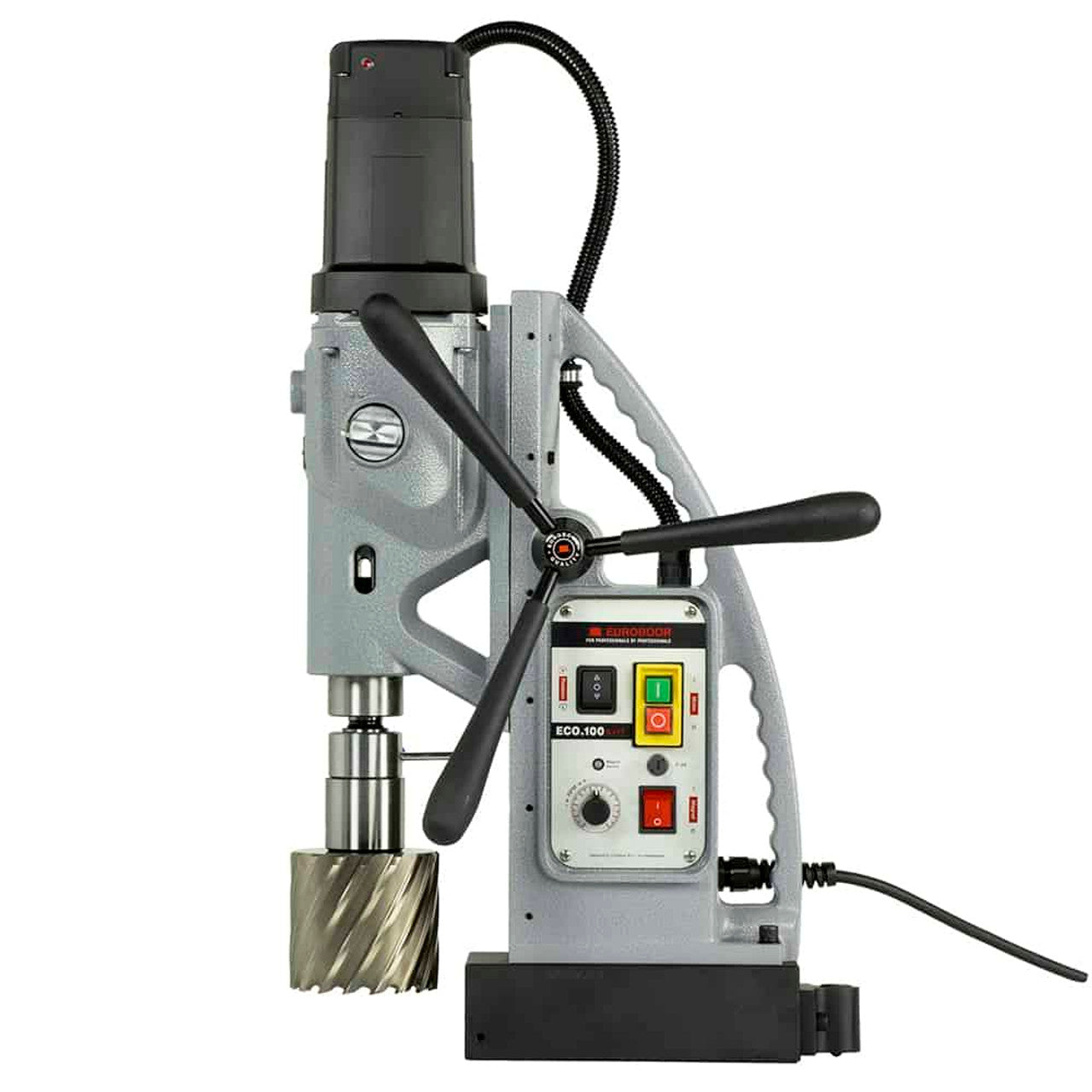

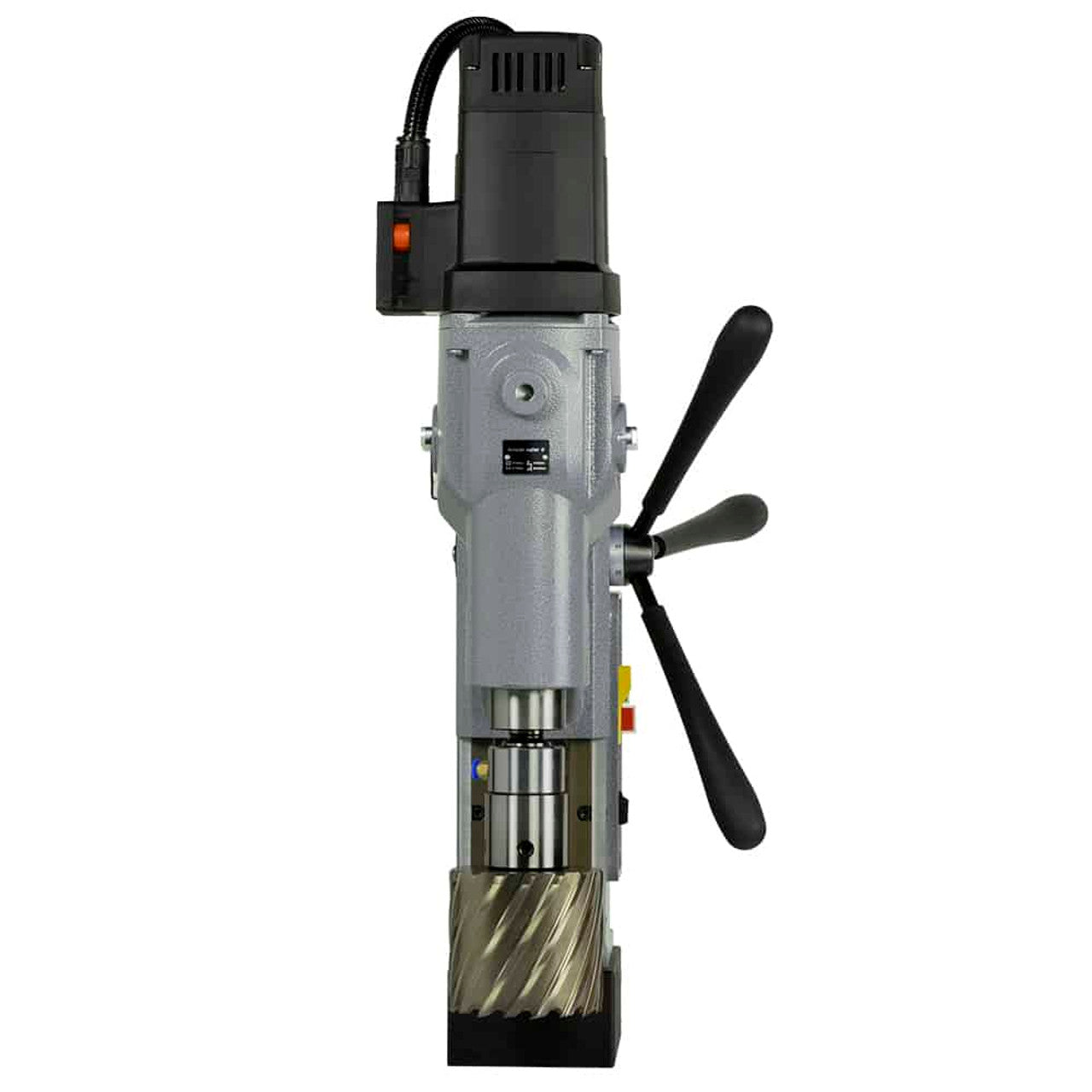

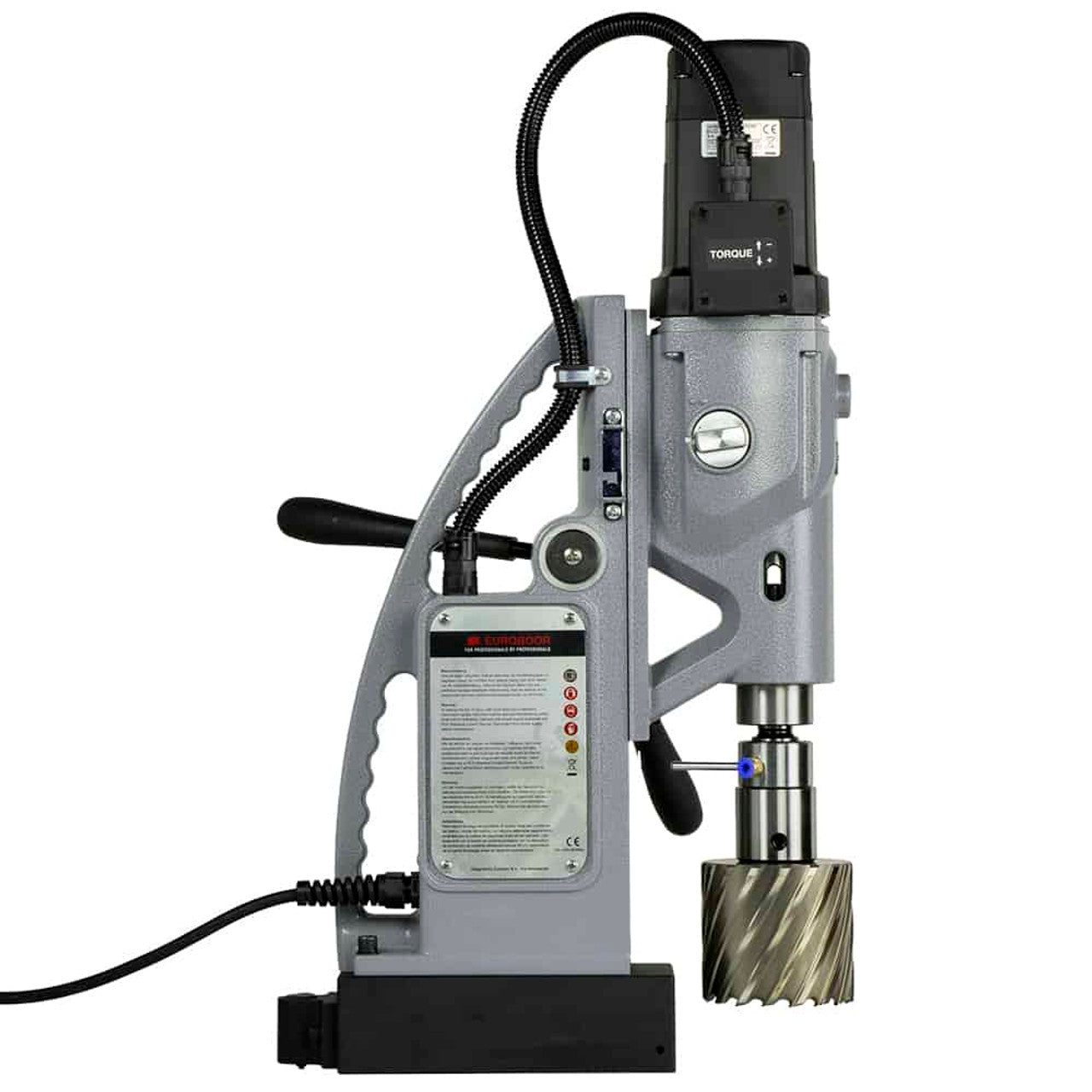

Discover the unparalleled drilling capabilities of the Euroboor ECO.100S+/T, a magnetic core drilling machine designed to revolutionize your drilling experience. With its advanced technology and robust design, this machine offers exceptional precision and power, making it ideal for a wide range of industrial applications.
With features like variable speed and a reversible motor, the ECO 100 is unmatched in its class for versatility.

Advanced Technology for Enhanced Performance

The Euroboor ECO.100S+/T is not just a drilling machine; it's a technological marvel. Equipped with Sensortec, Temptec, and Gyro-Tec technologies, it ensures optimal performance under various conditions. The machine's power surge and fluctuation protection features safeguard it against electrical inconsistencies, ensuring longevity and consistent performance.

Safety and Durability Combined

Your safety is paramount. That's why the Euroboor ECO.100S+/T comes with an automatic shut-off feature triggered by carbon brush wear, overheat protection, and advanced electronics that reduce the risk of machine, tool, and workpiece damage. These features also protect the operator from potential injuries, making it a reliable choice for any workspace.

Versatility in Drilling and Tapping

This machine stands out for its versatility. Its four-speed, oil-lubricated gearbox and Morse Taper 3 spindle with integrated tool cooling and lubrication make it particularly suitable for tapping. The electronic speed adjustment and torque control on the motor house enhance its adaptability to various materials and drilling requirements.

Efficient and Energy-Saving Design

The Euroboor ECO.100S+/T features a strong dual coil CNC machined 2-way magnet, resulting in less energy consumption and heat generation. This not only extends the machine's lifespan but also reduces the likelihood of armature and control unit damage. Plus, its design is ideal for areas with less stable power supply.

Timely Service Notifications

Avoid unexpected downtime and unnecessary part replacements with the machine's timely service notifications. This proactive feature helps you maintain the drill in peak condition, saving costs in the long run.

Specifications:

• Annular Cutting Range: Ø 12 - 100 mm (Ø 1/2" - 4")
• Twist Drilling Range: Ø 1 - 31.75 mm (Ø 1/16" - 1 1/4")
• Countersinking: Ø 10 - 105 mm (Ø 3/8" - 4 1/8")
• Tapping: M3 - M30 (Ø 1/8" - 1 3/16")
• Dimensions (LxWxH): 365 x 310 x 515 - 715 mm (14 3/8" x 12 3/16" x 20 1/4" - 28 1/8")
• Stroke: 260 mm (10 1/4")
• Weight: 27.8 kg (61.3 lbs)
• Magnet Dimensions: 220 x 110 x 64 mm (8 11/16" x 4 5/16" x 2 1/2")
• Magnetic Force: 3,000 kg (6,615 lbs)
• Motor Power: 1,900 W (17.3 A)
• Total Power: 2,050 W (18.6 A)
• Speed Range (No Load / Load): 42 - 620 rpm / 85 - 480 rpm
• Spindle (Weldon): MT3 19.05 mm (MT3 3/4")
• Voltage: 110 - 120 V / 60 Hz, 220 - 240 V / 50 - 60 Hz

Enhance your industrial drilling capabilities with the Euroboor ECO.100S+/T, a machine that combines power, precision, and protection in one innovative package.
