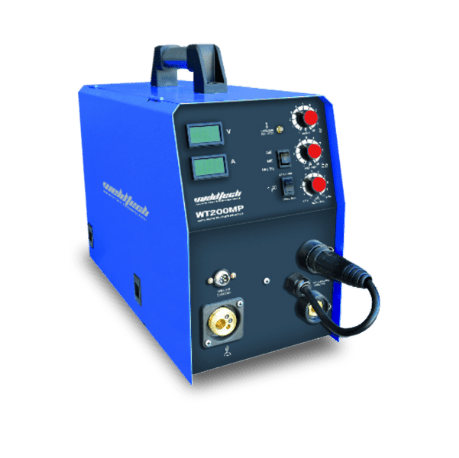

WeldTech WT200MP 200A Inverter MIG/MMA/TIG Welder (15A Plug)

WeldTech WT200MP 200A Inverter MIG/MMA/TIG Welder - Precision Welding, Power Unleashed!

Experience the WeldTech WT200MP, a 200A Inverter MIG/MMA/TIG Welder featuring cutting-edge IGBT Inverter Technology. This all-in-one welding marvel offers MIG, TIG, and ARC processes, delivering professional results for both workshop and on-site projects. With powerful 200A welding capability, this welder effortlessly tackles steel thicknesses up to 12mm, making it a powerhouse for a wide range of applications.

Weighing only 13kg and equipped with a compact design, the WT200MP is remarkably portable, ensuring convenience for your welding needs. The latest IGBT inverter technology provides optimal results, and the inductance adjustment allows for precise weld control. The welder offers versatility with optional spool gun availability for aluminum and silicon bronze welding.

Enjoy a 60% duty cycle at 160A for MIG welding and 60% duty cycle at 130A for ARC welding. The live digital displays offer accurate feedback of welding input, while stepless voltage and wire feed control ensure optimum weld control. The inclusion of Lift TIG with an optional TIG torch adds to the machine's versatility. Gasless welding results are exceptional, providing a seamless experience.

With a 15A plug, the WT200MP is ideal for workshop projects and commercial power supplies. The 18-month trade warranty provides peace of mind for your investment. The welder comes complete with ARC and Earth leads, a 3m Binzel-style Euro-connect MIG torch, and an Argon regulator with a CO2 adaptor.

Key Features:

• Powerful - 200A welding power up to 12mm steel thickness
• Portable - Only 13kg super lightweight and portable
• Reliable - All-in-one machine for ARC, MIG, and TIG
• Compact design - only 13kg
• MIG, TIG, and ARC welding
• Latest IGBT inverter technology for the best results
• Inductance adjustment for precise weld control
• Optional spool gun available for aluminum and silicon bronze
• MIG 60% duty cycle @160A, ARC 60 duty cycle @ 130A
• 230V single phase on 15A plug
• Live digital displays for accurate feedback of welding input
• Stepless voltage and wire feed control for optimum weld control
• Lift TIG with optional TIG torch
• Exceptional results on gasless welding
• 15A plug - ideal for workshop projects and commercial power supplies
• 18 Month Trade Warranty
• Comes with ARC & Earth leads, 3m Binzel-style Euro-connect MIG torch, and Argon regulator w/CO2 Adaptor
• Suitable For DIY or Small Projects

Specifications:

• Dimensions: 485 x 220x 390mm
• Weight: 13Kg
• Input Power Supply: 230V AC 15A 50/60 Hz
• Input Power Supply tolerance: 170V-265V AC
• Maximum Input Current: 29.4A
• Input Generator Capacity: 7kVA
• MIG Voltage Output: 15V-24V
• MIG Current Output: 40A-200A
• MIG Duty Cycle: 200A@25%, 160A@60%, 120A@100%
• MMA/ TIG Current Output: 30A-170A
• MMA O/C Voltage: 50V
• MMA /TIG Duty Cycle: 170A@25%, 130A@60%, 100A@100%
• Insulation Class: IP21
• Power Efficiency: 0.85
• Power Factor: 0.83
• MIG Wire Size: Steel 0.6/0.8/0.9/1.0mm Knurled 0.8/0.9mm
• Wire Feeding Speed: 2-15 m/minute
• Mig Wire Spool Size: D200mm/D300mm 5Kg/15Kg
• Post Gas Flow Time: 2s
• MMA Rod Size: 1.6-4.0mm
