WeldTech BW-TIG200ACDC 200A Pulse TIG/MMA Inverter Welder (15A Plug)

WeldTech BW-TIG200ACDC 200A Pulse TIG/MMA Inverter Welder (15A Plug)


📑 Download Product Brochure

Regular price $1,795.00 ex. GST
Regular price Sale price $1,795.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100

View full details

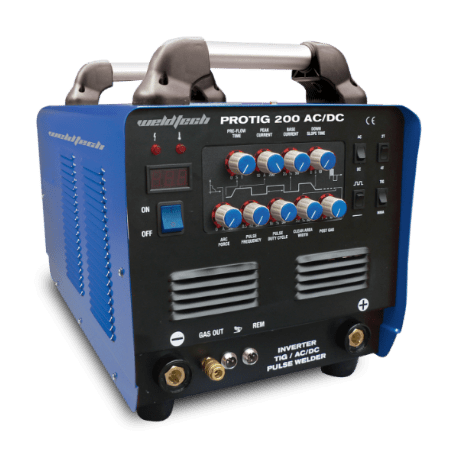

WeldTech BW-TIG 200 AC/DC - Precision Inverter TIG/ARC Pulse Welder for Aluminium and Steel

Experience the pinnacle of TIG welding with the WeldTech BW-TIG 200 AC/DC - a robust and portable 200AMP Inverter TIG/ARC AC/DC Pulse Welder. This cutting-edge machine is specially designed for TIG welding aluminium and steels ranging from 0.3mm to 10mm. Packed with features, controls, and a digital read-out, this inverter offers professional-grade performance in a compact and user-friendly case.

Key Features:

  • Powerful Performance: Ranging from 20 to 200A, the BW-TIG 200 AC/DC is capable of TIG and ARC welding, handling materials up to 10mm thickness.
  • Portability & Robustness: Weighing just 18kg, this welder is highly portable without compromising on durability.
  • Reliability: Utilizes cutting-edge IGBT Inverter Technology for enhanced reliability and efficiency.
  • Versatile TIG Welding: Exclusive HF Inverter technology provides advantages in footprint, weight, and power efficiency. Ideal for DIY projects or small workshops.
  • User-Friendly Controls: Digital read-out and intuitive controls make the inverter exceptionally smooth and easy to operate.
  • ARC Welding Capability: Offers a solid 200A MMA (ARC welding ability), making it versatile for various applications.
  • HF Start TIG Welding: Includes 2T/4T TIG function for precise and controlled welding.
  • Adjustable Settings: ARC force adjustment, adjustable pulse frequency and pulse current, post-flow, and pre-flow gas adjustment for optimal welding conditions.
  • Plug and Play: Equipped with a 15A plug, suitable for workshop power supplies. Optional foot control available for added convenience.
  • Warranty: Backed by an 18-Month Trade Warranty for your peace of mind.


  • Input Power Voltage Freq. (V): 220+/-15%50/60Hz Single phase R
  • Max Weld Thickness (mm): 10
  • Rated Input Power Capacity (KVA): 3.9
  • Rod Diameter (mm): 1.6 - 4
  • No Load Voltage (V): 56
  • Postflow Time (Seconds): 2-10
  • Output Current Range (A): 20 - 200
  • Insulation Class: F
  • Rated Output Voltage (V): 17.4
  • Weight (kg): 20
  • Duty Cycle %: 60% @200A, 100% @140A
  • Overall Dimensions (mm): 493 x 330 x 320
