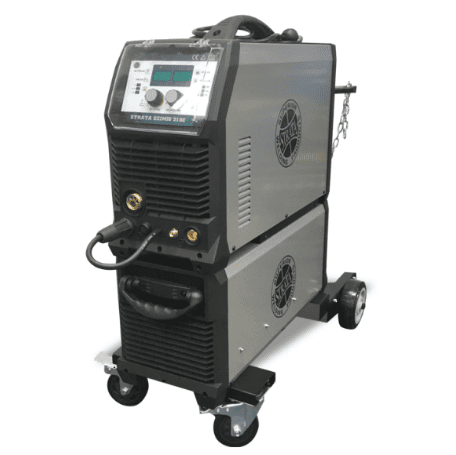

Strata EziMig215C Pack 200A Compact Synergic Inverter MIG/MMA/TIG Welder Package (15A Plug)

EziMig215C Pack - The Ultimate 200A Compact Synergic MIG/MMA/TIG Welding Package

Revolutionize your welding experience with the EziMig215C Pack, an all-inclusive 200A Compact Synergic MIG/MMA/TIG Welding Package that brings cutting-edge technology and unparalleled versatility to your fingertips. Engineered for the demands of today's industrial professionals, this ultra-compact welder is a game-changer in the world of welding. Built to last, the EZIMIG 215C combines the latest IGBT inverter technology, extreme stress testing up to 440V, and insulation class IP23, ensuring exceptional performance and durability in every welding project.

Key Features:

• Versatile Power Source: The single-phase, 230V, 15A input power provides the flexibility to adapt to various welding tasks.
• Wire Options: Switch effortlessly between gas and gasless wire setups, offering adaptability for different welding requirements.
• Compact Design: The lightweight aluminum chassis, coupled with the compact dimensions of 550x215x415mm, makes this welder highly portable and suitable for on-the-go projects.
• Industrial-Grade Protection: With an IP23 industrial rating, the machine is well-protected against damage, moisture, and corrosion, ensuring longevity in challenging environments.
• Precise Control: Adjustable pre-flow, post-flow, burn-back, and soft-start features, along with adjustable wave form (inductance), grant greater control for precise and smooth welding.
• Multi-Process Functionality: The EZIMIG 215C excels in MIG, MMA, and TIG welding, offering a comprehensive solution for various applications.
• Lift TIG Function: Optional TIG torch availability allows for precision welding, making it ideal for aesthetically significant projects.
• User-Friendly Controls: The 2T/4T trigger control, MIG Spot Welding Mode, and a digital display ensure user-friendly and intuitive operation.
• Generator Compatibility: With a generator-friendly design (10KVA), this welder is ready to accompany you wherever your projects take you.
• Comprehensive Accessories: The package includes essential accessories like a 3m earth lead with a heavy-duty earth clamp, 4m MMA lead with a heavy-duty twist-lock electrode holder, Binzel style MT250-40ER MIG torch, 2-stage flowmeter, argon gas regulator and adapter, 4m gas hose, gas inlet quick connector, hose clamps, and 'V' Groove MIG drive rollers (0.6-0.8mm & 0.9-1.0mm).

What's Included:

• EZIMIG215C Welder
• Compact Trolley with Integrated Storage Unit
• 3m earth lead with heavy-duty earth clamp
• 4m MMA lead with heavy-duty twist-lock electrode holder
• Binzel style MT250-40ER MIG torch
• 2-stage flowmeter
• Argon gas regulator and adapter
• 4m gas hose
• Gas inlet quick connector
• Hose clamps
• 'V' Groove MIG drive rollers (0.6-0.8mm & 0.9-1.0mm).

Specifications:

• Dimensions: 550x215x415mm
• Weight: 20.5kg
• Input Power Supply: 230V AC 15A 50/60Hz
• Input Power Tolerance: 230±10%V
• Maximum Input Current: 42A
• Generator Capacity: 10KVA
• Mig Output Voltage: 16V-27V
• Mig Output Current: 40-200A
• MIG Duty Cycle: 200A@25%, 155A@60%, 120A@100%
• Wire Feeding Speed: 1.5 - 16.5m/min
• MMA Current Output: 10A-160A
• MMA O/C Voltage: 58V
• MMA/TIG Duty Cycle: 160A@15%, 140A@60%, 110A@100%
• Insulation Class: IP23
• Power Efficiency: 85%
• Power Factor: 0.65
• Standards: EN60974-1:2012
• MIG Drive Rollers Available: V Groove: 0.6/ 0.8/ 0.9/ 1.0mm Knurled: 0.8/ 0.9/ 1.0mm U Groove: 0.8/ 1.0mm
• Mig Wire Spool Size: D200/D300 5kg/15kg
• MMA Rod Size: 1.6-5.0mm
• Warranty: 24 months

Warranty: Backed by a solid 24-month warranty, the EziMig215C Pack offers peace of mind, ensuring that your investment is protected and supported through your welding endeavors. Experience unparalleled performance, versatility, and reliability with this welding package designed for the demands of today's industrial landscape.
