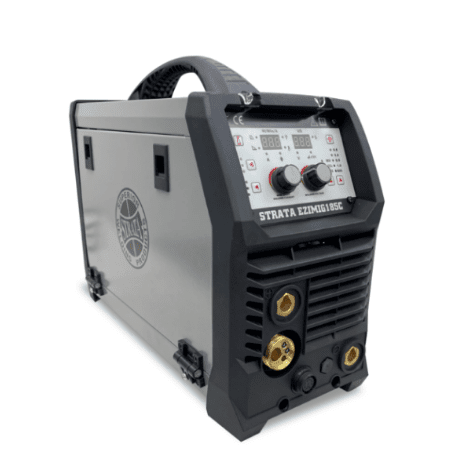

Strata EziMig185C 180A Compact Synergic Inverter MIG/MMA Welder (10A Plug)

EziMig185C 180A Compact Synergic MIG/MMA Welding Machine - Precision Welding, Ultimate Portability

The EziMig185C redefines welding excellence with its ultra-compact design and intuitive features, making it an indispensable tool for today's industrial professionals. Boasting the latest IGBT inverter technology, extreme stress testing up to 440V, and an insulation class of IP23, this multi-process welder is engineered for lasting performance.

Enjoy the convenience of synergic MIG operation with Parameter Save/Recall, providing consistent weld results effortlessly. The machine offers MIG inductance and burnback control for enhanced precision in MIG welding. Its spool gun connection with remote control ensures effective welding with soft wires like aluminum and MIG brazing with bronze wires.

The lightweight and compact design make it ideal for portable applications, while features like adjustable MMA Hot Start & Arc Force functions add versatility. The industrial IP23 casing with front panel protection ensures resistance to damage, moisture, and corrosion. The lift TIG welding operation is perfect for precision and aesthetically important welding jobs.

Dual digital display meters allow for accurate pre-setting and feedback of welding parameters and output. The 2T/4T/Spot Weld Trigger Control, metal chassis wire feeder, and reversible polarity MIG welding operation contribute to the machine's user-friendly design. The intelligent protection system, including temperature, voltage, and current sensors, enhances reliability and safety.

This generator-friendly welder comes with a quick-connect inlet gas fitting and includes essential accessories: Binzel Style 250 MIG Torch, Earth & ARC set, Argon Regulator & CO2 Adaptor, Gas Hose with Quick Connect Fittings, and Drive Roller 'V' Groove (0.6-0.8mm & 0.9-1.0mm).

Key Features:

• IGBT Inverter technology for smooth & stable welding output
• Synergic MIG operation with Parameter Save/Recall
• Lightweight & Compact Design, ideal for portable applications
• Adjustable MMA Hot Start & Arc Force Functions
• Industrial IP23 casing for resistance to damage, moisture, and corrosion
• Lift TIG Welding Operation for precision jobs
• Dual Digital Display Meters for accurate pre-setting and feedback
• Reversible Polarity MIG Welding Operation for gas & gasless MIG welding
• Intelligent Protection System for increased reliability & safety
• Generator Friendly - Designed to work with generator power supply
• Quick connect inlet gas fitting

What's Included:

• Binzel Style 250 MIG Torch
• Earth & ARC set
• Argon Regulator & CO2 Adaptor
• Gas Hose with Quick Connect Fittings
• Drive Roller 'V' Groove (0.6-0.8mm & 0.9-1.0mm)

Specifications:

• Dimensions: 460x190x360
• Weight: 11kg
• Input Power Supply: 230V AC 10A 50/60Hz
• Input Power Tolerance: 230±10%V
• Maximum Input Current: 26A
• Generator Capacity: 7KVA
• Mig Output Voltage: 10V - 26V
• Mig Output Current: 40 - 180A
• MIG Duty Cycle: 180A@15%, 130A@60%, 100A@100%
• Wire Feeding Speed: 1.5 - 15m/minute
• MMA Current Output: 10A-180A
• MMA O/C Voltage: 65V
• MMA/TIG Duty Cycle: 160A@10%, 130A@60%, 100A@100%
• Insulation Class: IP23
• Power Efficiency: 85%
• Power Factor: 0.65
• Standards: EN60974-1:2012
• MIG Drive Rollers Available: V Groove: 0.6/ 0.8/ 0.9/ 1.0mm Knurled: 0.8/ 0.9 mm
• Mig Wire Spool Size: D200mm / 5KG
• MMA Rod Size: 1.6 - 3.2mm
• Warranty: 24 months
