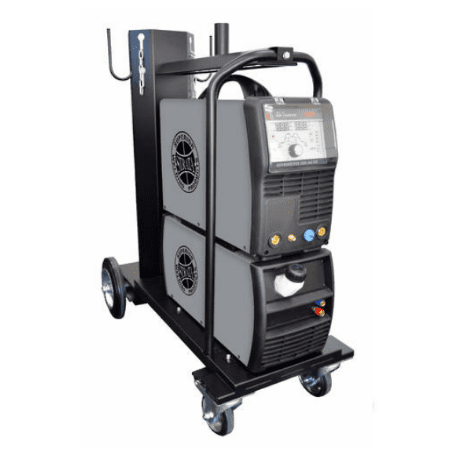

Strata AdvanceTIG320 Pack Water Cooled 320A HF AC/DC Pulse TIG/MMA Inverter Welder Package (3 Phase)

Strata AdvanceTIG320 Pack Water Cooled 320A HF AC/DC Pulse TIG/MMA Inverter Welder Package (3 Phase)


📑 Download Product Brochure

Regular price $6,895.00 ex. GST
Regular price Sale price $6,895.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100

View full details

Strata AdvanceTig320ACDC Pack - Superior 320A Inverter AC/DC HF Pulse TIG/MMA Welding Package

Elevate your welding capabilities with the Strata AdvanceTig320ACDC Pack, a powerhouse inverter designed for superior performance in both TIG and MMA welding applications. Featuring advanced IGBT technology, this welding package ensures smooth and stable output, increased reliability, and an impressive duty cycle. Built tough for rugged New Zealand workshops and onsite tasks, this package includes the ADVANCETIG320ACDC unit, an Industrial Welding Trolley, and a Water Cooler Unit for a comprehensive welding solution.

Key Features:

  • IGBT Module Inverter Technology: Delivers a smooth and stable output with increased reliability and a high-duty cycle.
  • Phase Loss Protection: Automatically shuts down in case of power supply phase loss, preventing damage to the equipment.
  • Integrated Heavy-Duty Industrial Trolley and Water Cooler (Optional): Enhances portability and cooling efficiency for extended welding sessions.
  • Damage-Resistant Industrial Casing: With front panel protection, ensuring durability against harsh workshop conditions.
  • Microprocessor Control System: Provides superior and dynamic arc characteristics for precise welding results.
  • Adjustable Arc Force, Hot Start & Automatic Anti-Stick Control: Offers greater control and ease of use for MMA welding.
  • Lift TIG and HF Start Modes: Provides versatility when welding around sensitive electronic equipment.
  • Electronic HF TIG Arc Ignition System: Enables contamination-free and easy arc starting with low EMF interference.
  • 2T/4T Trigger Control Modes: Enhances control flexibility during welding operations.
  • Dual Digital Display Meters: Allows accurate presetting and feedback of welding parameters and output.
  • High-Quality & Over-Specified Electronic Components: Ensures durability and reliability in demanding environments.
  • Digital Up/Down Button Remote Control and Wireless Remote Control (Optional): Offers convenient remote operation.
  • Quick Connect Inlet Gas Fitting: Facilitates ease of use and changing of gas bottles.
  • Package Includes: 4m MMA lead with a heavy-duty twist-lock electrode holder, 3m Earth Lead with a heavy-duty earth clamp, Professional TIG torch, Argon Gas Regulator, Gas Hose, Gas Inlet Quick Connector, and Gas Hose Clamps.


  • Dimensions: 550x240x445mm
  • Weight: 25kg
  • Input Power Supply: 400V AC 50Hz
  • Maximum Input Current: 25A
  • Generator Capacity: 17.3KVA
  • TIG Pulse Frequency: 0.5-900Hz
  • AC TIG Waveform: Square, Sine, Triangular
  • AC Frequency Adjustment: 50-250Hz
  • Standards: EN60974-1:2012
  • Current Output: 10-320A
  • Duty Cycle MMA+DC TIG/AC: 60% @320A
  • Max. Weld Thickness (mm): 12mm +
