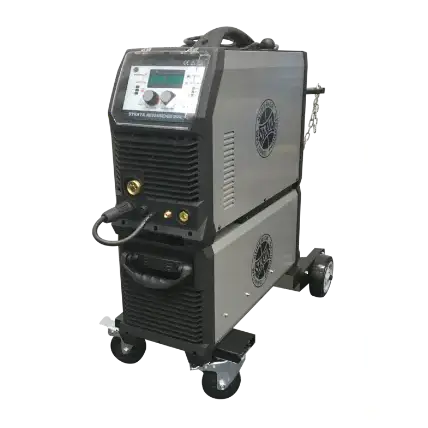

Strata AdvanceMig315C Pack 315A Compact Inverter MIG/MMA Welder Package (3 Phase)

Strata AdvanceMig315C Pack 315A Compact Inverter MIG/MMA Welder Package (3 Phase)

SKU:

šŸ“‘ Download Product Brochure

Regular price $3,595.00 ex. GST
Regular price Sale price $3,595.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100

View full details

Strata AdvanceMig315C Pack - 315A Compact Inverter MIG/MMA Welder Package- Unleashing Precision in 3-Phase Welding Technology

Introducing the Strata AdvanceMig315C, a 315A Compact Inverter MIG/MMA Welder that stands at the forefront of welding technology. This 3-phase, multi-process welding machine integrates the latest IGBT inverter technology into a compact package, making it the ideal companion for a diverse range of jobs. Built with resilience and intelligence, this machine is a must-have for today's industrial professionals, offering exceptional performance even in the harshest environments of the New Zealand workplace.

Key Features:

  • IGBT Module inverter technology for smooth & stable welding output, increased reliability, and high duty cycle
  • 4-Roll geared metal wire feed unit for a powerful and smooth wire feed
  • Digital microprocessor control system with superior & dynamic arc characteristics
  • Remote control spool gun connection for effective welding with soft wires like aluminum
  • Lightweight and compact design, perfect for portable applications
  • MIG waveform (inductance) for precise arc control and smooth welding results
  • Industrial IP23 casing with front panel protection, resistant to damage, moisture, and corrosion
  • Adjustable pre-flow, post-flow, burnback, and soft start settings for great control in MIG welding
  • Extreme stress tested in production up to 550V, ensuring rugged reliability
  • 2T/4T trigger operation with crater control settings
  • Dual digital display meters for accurate pre-setting and feedback of welding parameters and output
  • Intelligent protection system with temperature, voltage, and current sensors for increased reliability & safety
  • Designed to work with a generator power supply with protection from power surges
  • Reversible polarity MIG welding operation, suitable for gas & gasless welding

Accessories Included:

  • 3m Earth Lead with heavy-duty earth clamp
  • 4m MMA lead with a heavy-duty twist-lock electrode holder
  • Professional MIG Torch
  • Argon Gas Regulator
  • CO2 Cylinder Adaptor
  • 4m Gas Hose
  • Gas Inlet Quick Connector
  • Gas Hose Clamp
  • Wire Drive Roller ā€˜Vā€™ Groove (0.6-0.8mm & 0.9-1.0mm)
  • Wire Drive Roller flux-cored (0.8-0.9mm)
  • Compact Mig Welding Trolley

Specifications:

  • Dimensions: 680x240x450mm
  • Weight: 26kg
  • Input Power Supply: 400V AC 32A 3 PHASE 50/60Hz
  • Input Power Tolerance: Ā±20%
  • Maximum Input Current: 20A
  • Generator Capacity: 17KVA
  • MIG Drive Rollers Available: V Groove 0.6/0.8/0.9/1.0/1.2mm, Knurled: 0.8/0.9/1.0/1.2mm, U Groove: 0.8/1.0/1.2mm
  • Mig Wire Spool Size: D200mm/D300mm 5kg/15kg
  • MMA O/C Voltage: 70V
  • MMA/TIG Duty Cycle: 315A@35% 195A@100%
  • Standards: EN60974-1:2012
  • MMA Rod Size: 2.4 - 6.0mm
  • Warranty: 36 months
  • Power Efficiency: 85%
  • Power Factor: 0.7
  • Mig Output Current: 15A - 315A
  • MIG Duty Cycle: 315A @40%, 200A @100%
  • MMA Current Output: 10A - 315A
  • Insulation Class: IP23
  • Wire Feeding Speed: 2.4 - 18m/min
  • Mig Output Voltage: 14.8 - 30V
