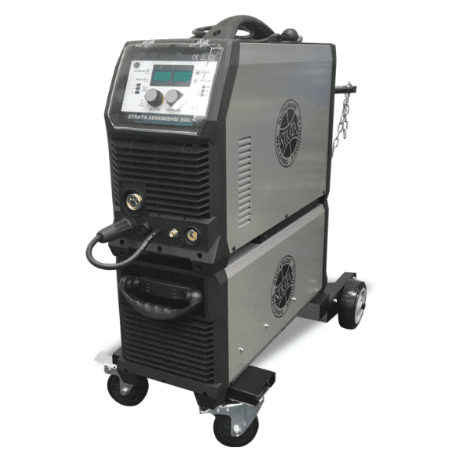

Strata AdvanceMig255C Pack 250A Compact Synergic Inverter MIG/MMA/TIG Welder Package (15A Plug)

Strata AdvanceMig315C - 315A Compact Inverter MIG/MMA Welder - Unleashing Precision in 3-Phase Welding Technology

Product Description: Introducing the Strata AdvanceMig315C, a 315A Compact Inverter MIG/MMA Welder that stands at the forefront of welding technology. This 3-phase, multi-process welding machine integrates the latest IGBT inverter technology into a compact package, making it the ideal companion for a diverse range of jobs. Built with resilience and intelligence, this machine is a must-have for today's industrial professionals, offering exceptional performance even in the harshest environments of the New Zealand workplace.

Key Features:

• IGBT Module inverter technology for smooth & stable welding output, increased reliability, and high duty cycle
• 4-Roll geared metal wire feed unit for a powerful and smooth wire feed
• Digital microprocessor control system with superior & dynamic arc characteristics
• Remote control spool gun connection for effective welding with soft wires like aluminum
• Lightweight and compact design, perfect for portable applications
• MIG waveform (inductance) for precise arc control and smooth welding results
• Industrial IP23 casing with front panel protection, resistant to damage, moisture, and corrosion
• Adjustable pre-flow, post-flow, burnback, and soft start settings for great control in MIG welding
• Extreme stress tested in production up to 550V, ensuring rugged reliability
• 2T/4T trigger operation with crater control settings
• Dual digital display meters for accurate pre-setting and feedback of welding parameters and output
• Intelligent protection system with temperature, voltage, and current sensors for increased reliability & safety
• Designed to work with a generator power supply with protection from power surges
• Reversible polarity MIG welding operation, suitable for gas & gasless welding

Accessories Included:

• 3m Earth Lead with heavy-duty earth clamp
• 4m MMA lead with a heavy-duty twist-lock electrode holder
• Professional MIG Torch
• Argon Gas Regulator
• CO2 Cylinder Adaptor
• 4m Gas Hose
• Gas Inlet Quick Connector
• Gas Hose Clamp
• Wire Drive Roller ‘V’ Groove (0.6-0.8mm & 0.9-1.0mm)
• Wire Drive Roller flux-cored (0.8-0.9mm)

Specifications:

• Dimensions: 680x240x450mm
• Weight: 26kg
• Input Power Supply: 400V AC 32A 3 PHASE 50/60Hz
• Input Power Tolerance: ±20%
• Maximum Input Current: 20A
• Generator Capacity: 17KVA
• MIG Drive Rollers Available: V Groove 0.6/0.8/0.9/1.0/1.2mm, Knurled: 0.8/0.9/1.0/1.2mm, U Groove: 0.8/1.0/1.2mm
• Mig Wire Spool Size: D200mm/D300mm 5kg/15kg
• MMA O/C Voltage: 70V
• MMA/TIG Duty Cycle: 315A@35% 195A@100%
• Standards: EN60974-1:2012
• MMA Rod Size: 2.4 - 6.0mm
• Warranty: 36 months
• Power Efficiency: 85%
• Power Factor: 0.7
• Mig Output Current: 15A - 315A
• MIG Duty Cycle: 315A @40%, 200A @100%
• MMA Current Output: 10A - 315A
• Insulation Class: IP23
• Wire Feeding Speed: 2.4 - 18m/min
• Mig Output Voltage: 14.8 - 30V
