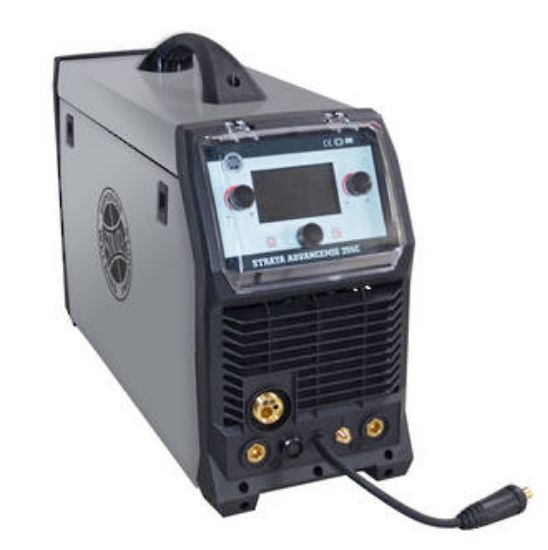

Strata AdvanceMig255C 250A Compact Synergic Inverter MIG/MMA/TIG Welder (15A Plug)

Strata AdvanceMig255C 250A Compact Synergic Inverter MIG/MMA/TIG Welder (15A Plug)


📑 Download Product Brochure

Regular price $2,295.00 ex. GST
Regular price Sale price $2,295.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100

View full details

AdvanceMig255C 250A Compact Synergic MIG/MMA Welding Machine - Unleashing Precision in Welding Technology

Experience the pinnacle of welding technology with the AdvanceMig255C, a 250A Compact Synergic MIG/MMA Welding Machine. Fusing IGBT and PFC technology, this multi-process welder stands as an indispensable tool for a diverse range of industrial professionals. Engineered with high-quality, over-specified electronics, extreme stress testing up to 440V, and IP23 protection, the AdvanceMig255C is crafted to thrive in the most challenging environments encountered in the New Zealand workplace.

Key Features:

  • Digital microprocessor control system for superior & dynamic arc characteristics
  • Multi-voltage input, compatible with a wide range of input voltages and extension leads
  • Smart full-color LCD display for clear and intuitive presentation of welding parameters
  • Synergic MIG operation with parameter save/recall for consistent welding results
  • Lift TIG operation with down slope and remote current control ability (optional torch available)
  • 4-roll geared metal wire feeder unit for powerful and smooth wire feed
  • MIG waveform (inductance) for precise arc control and smooth welding results
  • Lightweight & compact design ideal for portable applications
  • Intelligent protection system with temperature, voltage, and current sensors for increased reliability & safety
  • Designed to work with generator power supply, protected from power surges

Accessories Included:

  • 3m earth lead with a heavy-duty earth clamp
  • 4m MMA lead with a heavy-duty twist-lock electrode holder
  • MT240-4ER MIG torch
  • 2-stage flowmeter
  • Argon gas regulator and adapter
  • 4m gas hose
  • Gas inlet quick connector
  • Hose clamps
  • MIG drive rollers (V Groove: 0.6/ 0.8/ 0.9/ 1.0mm, Knurled: 0.8/ 0.9/ 1.0mm, U Groove: 0.8/ 1.0mm)


  • Dimensions: 680x230x445mm
  • Weight: 25kg
  • Input Power Supply: 230V AC 15A 50/60Hz
  • Input Power Tolerance: 90V - 275V
  • Maximum Input Current: 41A
  • Generator Capacity: 10KVA
  • MMA/TIG Duty Cycle: 250A@13%, 180A@60%, 140A@100%
  • MIG Drive Rollers Available: V Groove: 0.6/ 0.8/ 0.9/ 1.0mm, Knurled: 0.8/ 0.9/ 1.0mm, U Groove: 0.8/ 1.0mm
  • Mig Wire Spool Size: D200mm/D300mm 5kg/15kg
  • MMA O/C Voltage: 65V
  • Standards: EN60974-1:2012
  • MMA Rod Size: 1.6-5.0mm
  • Warranty: 36 months
  • Power Efficiency: 80%
  • Power Factor: 0.99
  • Mig Output Current: 25A - 250A
  • MIG Duty Cycle: 250A@16%, 195A@60%, 150A@100%
  • MMA Current Output: 10A - 250A
  • Mig Output Voltage: 10 - 30V
  • Wire Feeding Speed: 2.4 - 18m/min
  • Insulation Class: IP23
