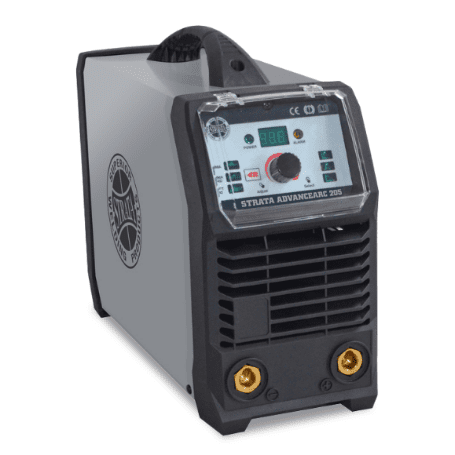

Strata AdvanceARC205 200A MMA (Stick) ARC/Lift TIG PFC Inverter Welder (15A Plug)

Strata AdvanceARC205 200A MMA (Stick) ARC/Lift TIG PFC Inverter Welder (15A Plug)

SKU:

📑 Download Product Brochure

Regular price $795.00 ex. GST
Regular price Sale price $795.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100

View full details

Strata AdvanceArc205 - 200A PFC Inverter MMA/Lift TIG Welder

The Strata AdvanceArc205 stands at the forefront of welding technology, featuring IGBT Inverter technology and Active PFC (Power Factor Correction) for a seamless and stable welding output. With a robust 200A power capacity, this PFC Inverter MMA/Lift TIG Welder ensures increased duty cycle and energy efficiency. Equipped with safety features such as MMA VRD protection, it operates smoothly across a wide range of input voltages, making it ideal for various applications. The industrial IP23 casing, lightweight design, and advanced microprocessor control system further contribute to its reliability and versatility.

Key Features:

  • IGBT Inverter Technology: Delivers a smooth and stable welding output for precise results.
  • Active PFC Technology: Increases duty cycle and energy efficiency for optimal performance.
  • MMA VRD Protection Mode: Enhances safety during welding operations.
  • Wide Input Voltage Range: Operates with a broad range of input voltages, including long extension leads.
  • Industrial IP23 Casing: Resists damage, moisture, and corrosion, ensuring longevity.
  • Adjustable Arc Force and Hot Start: Provides good control and ease of use during MMA welding.
  • Lift TIG Welding Operation: Ideal for precision in aesthetically important welding jobs (torch optional).
  • Digital Current Display Meter: Accurate pre-setting and feedback of welding parameters and output.
  • High-Quality Electronic Components: Ensures durability and reliability in various welding applications.
  • Intelligent Protection System: Equipped with temperature, voltage, and current sensors for increased reliability and safety.
  • Generator Compatibility: Designed to work with a generator power supply with protection from power surges.
  • Multi-PCB Construction: Economical for service and repair compared to single PCB design.
  • Includes Accessories: Comes with a 4m MMA Lead with a Heavy Duty Twist Lock Electrode Holder and a 3m Earth Lead with a Heavy Duty Earth Clamp.

Specifications:

  • Dimensions: 390x146x278mm
  • Weight: 6.1kg
  • Input Power Supply: 230V AC 10A 50/60Hz
  • Input Power Tolerance: 90V-275V AC
  • Maximum Input Current: 31.1A
  • Generator Capacity: 8KVA
  • MMA Current Output: 10A-200A
  • MMA O/C Voltage: 65V/ 14.5V Limited
  • MMA/TIG Duty Cycle: 200A@23%, 165A@60%, 130A@100%
  • Lift TIG Current Output: 10-200A
  • Lift TIG Duty Cycle: 200A@40%, 160A@60%, 130A@100%
  • Insulation Class: IP23
  • Power Efficiency: 85%
  • Power Factor: 0.99
  • Standards: EN60974-1:2012
  • MMA Rod Size: 1.6-4.0mm
  • Warranty: 36 months
