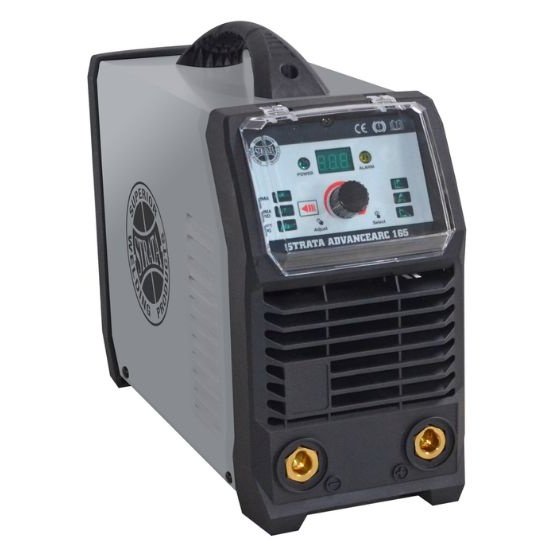

Strata AdvanceARC165 160A MMA (Stick) ARC/Lift TIG PFC Inverter Welder (10A Plug)

Strata AdvanceArc165 - 160A PFC Inverter MMA/Lift TIG Welder

The Strata AdvanceArc165 brings the power of PFC (Power Factor Correction) technology and advanced IGBT inverter technology to smart operators. This 160A PFC Inverter MMA/Lift TIG Welder is designed for increased reliability and performance, delivering exceptional results even in harsh and demanding conditions. Equipped with multi-voltage technology, it provides peace of mind when operating on generators or using long extension cords. With a lightweight and compact design, this welder is ideal for portable applications, while its durability and versatility make it a reliable choice for various welding needs.

Key Features:

• IGBT Inverter Technology: Ensures a smooth and stable welding output for precise results.
• Active PFC Technology: Increases duty cycle and energy efficiency, making it suitable for demanding conditions.
• MMA VRD Protection Mode: Enhances safety during welding operations.
• Multi-Voltage Technology: Operates with a wide range of input voltages, including long extension leads.
• Industrial IP23 Casing: Resists damage, moisture, and corrosion, ensuring longevity.
• Adjustable Arc Force and Hot Start: Provides good control and ease of use during MMA welding.
• Lift TIG Welding Operation: Ideal for precision in aesthetically important welding jobs (torch optional).
• Digital Current Display Meter: Accurate pre-setting and feedback of welding parameters and output.
• High-Quality Electronic Components: Ensures durability and reliability in various welding applications.
• Intelligent Protection System: Includes temperature, voltage, and current sensors for increased reliability and safety.
• Generator Compatibility: Designed to work with a generator power supply with protection from power surges.
• Multi-PCB Construction: Economical for service and repair compared to single PCB design.
• Includes Accessories: Comes with a 4m MMA Lead with a Heavy Duty Twist Lock Electrode Holder and a 3m Earth Lead with a Heavy Duty Earth Clamp.

Specifications:

• Dimensions: 390X146X278mm
• Weight: 6.1kg
• Input Power Supply: 230V AC 10A 50/60Hz
• Input Power Tolerance: 90V-275V AC
• Maximum Input Current: 22.9A
• Generator Capacity: 6KVA
• MMA Current Output: 10A-160A
• MMA O/C Voltage: 65V/ 14.5V Limited
• MMA/TIG Duty Cycle: 160A@20%, 135A@60%, 105A@100%
• Lift TIG Current Output: 10-160A
• Lift TIG Duty Cycle: 160A@40%, 135A@60%, 105A@100%
• Insulation Class: IP23
• Power Efficiency: 85%
• Power Factor: 0.99
• Standards: EN60974-1:2012
• MMA Rod Size: 1.6-4.0mm
• Warranty: 36 months
