ITEM NO: ACEB series
Chrome Vanadium Steel Material
High torque performance as over 1.6 times as ANSI & DIN standard
Professional quality for maximum durability and corrosion resistance
Satin Chrome Finished
SAE

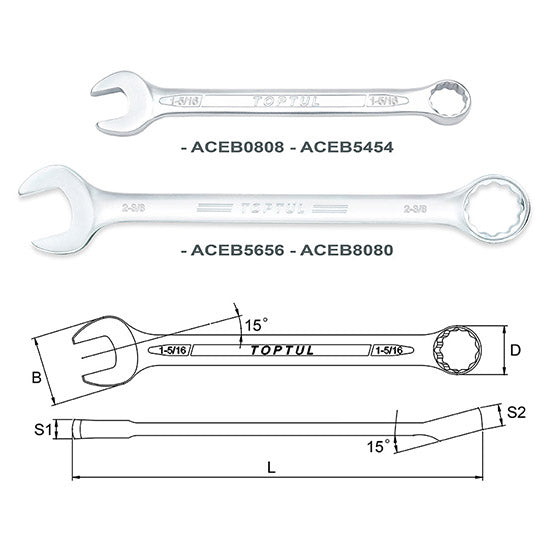

ITEM NO. | SIZE (inch) |
L (mm) |
B (mm) |
D (mm) |
S1 (mm) |
S2 (mm) |
Satin | ||||||
ACEB0808 | 1/4 | 109 | 14.5 | 10.2 | 3.5 | 5.3 |
ACEB1010 | 5/16 | 129 | 18.7 | 12.7 | 4.0 | 5.8 |
ACEB1111 | 11/32 | 139 | 20.8 | 14.0 | 4.1 | 6.6 |
ACEB1212 | 3/8 | 149 | 22.7 | 15.1 | 4.6 | 7.0 |
ACEB1414 | 7/16 | 159 | 24.7 | 16.7 | 5.0 | 7.5 |
ACEB1616 | 1/2 | 179 | 28.8 | 19.7 | 5.8 | 8.7 |
ACEB1818 | 9/16 | 189 | 31.4 | 20.6 | 6.0 | 9.0 |
ACEB2020 | 5/8 | 209 | 35.1 | 23.7 | 6.6 | 10.0 |
ACEB2222 | 11/16 | 219 | 37.6 | 24.9 | 6.8 | 11.0 |
ACEB2424 | 3/4 | 239 | 41.4 | 27.9 | 7.8 | 12.2 |
ACEB2626 | 13/16 | 259 | 46.2 | 30.7 | 8.4 | 12.8 |
ACEB2828 | 7/8 | 269 | 48.3 | 32.1 | 8.8 | 13.2 |
ACEB3030 | 15/16 | 289 | 51.5 | 34.2 | 9.4 | 13.5 |
ACEB3232 | 1 | 299 | 54.7 | 36.7 | 9.6 | 14.3 |
ACEB3434 | 1-1/16 | 319 | 58.8 | 39.5 | 10.2 | 16.5 |
ACEB3636 | 1-1/8 | 339 | 61.0 | 41.6 | 10.8 | 17.5 |
ACEB4040 | 1-1/4 | 369 | 67.4 | 44.7 | 11.6 | 19.5 |
ACEB4242 | 1-5/16 | 409 | 69.8 | 48.7 | 12.6 | 19.5 |
ACEB4444 | 1-3/8 | 409 | 69.8 | 48.7 | 12.6 | 19.5 |
ACEB4646 | 1-7/16 | 439 | 73.8 | 52.7 | 13.6 | 20.5 |
ACEB4848 | 1-1/2 | 439 | 73.8 | 52.7 | 13.6 | 20.5 |
ACEB5252 | 1-5/8 | 479 | 83.8 | 60.7 | 15.6 | 21.5 |
ACEB5454 | 1-11/16 | 479 | 83.8 | 60.7 | 15.6 | 21.5 |
ACEB5656 | 1-3/4 | 549 | 93.4 | 69.5 | 17.2 | 22.5 |
ACEB5858 | 1-13/16 | 549 | 93.4 | 69.5 | 17.2 | 22.5 |
ACEB6060 | 1-7/8 | 549 | 98.7 | 73.7 | 17.5 | 22.5 |
ACEB6464 | 2 | 549 | 98.7 | 73.7 | 17.5 | 22.5 |
ACEB6868 | 2-1/8 | 609 | 109.7 | 82.7 | 18.5 | 24.5 |
ACEB7070 | 2-3/16 | 609 | 109.7 | 82.7 | 18.5 | 24.5 |
ACEB7272 | 2-1/4 | 609 | 109.7 | 82.7 | 18.5 | 24.5 |
ACEB7676 | 2-3/8 | 699 | 121.4 | 91.5 | 19.5 | 27.5 |
ACEB8080Â | 2-1/2Â | 699 | 128.7 | 94.7 | 19.5 | 27.5 |
