ITEM NO: AAEB series
Chrome Vanadium Steel Material
High torque performance as over 1.6 times as ANSI & DIN standard
Professional quality for maximum durability and corrosion resistance
Satin Chrome Finished
METRICÂ
Â

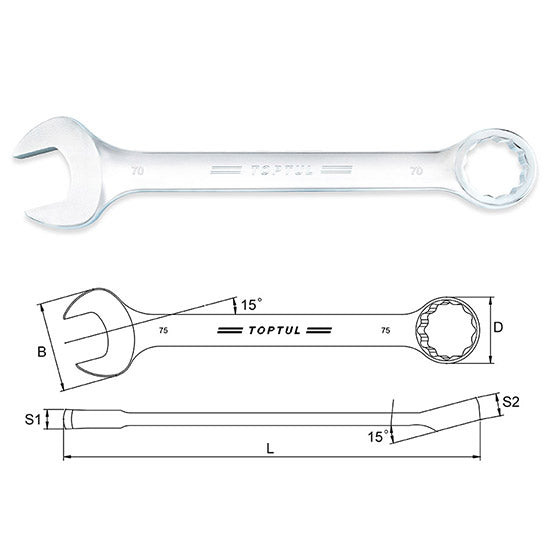

ITEM NO. | SIZE (mm) |
L (mm) |
B (mm) |
D (mm) |
S1 (mm) |
S2 (mm) |
Satin | ||||||
AAEB4545 | 45 | 549 | 93.4 | 69.5 | 17.2 | 22.5 |
AAEB4646 | 46 | 549 | 93.4 | 69.5 | 17.2 | 22.5 |
AAEB4848 | 48 | 549 | 98.7 | 73.7 | 17.5 | 22.5 |
AAEB5050 | 50 | 549 | 98.7 | 73.7 | 17.5 | 22.5 |
AAEB5555 | 55 | 609 | 109.7 | 82.7 | 18.5 | 24.5 |
AAEB6060 | 60 | 699 | 121.4 | 91.5 | 19.5 | 27.5 |
AAEB6565 | 65 | 699 | 128.7 | 94.7 | 19.5 | 27.5 |
AAEB7070 | 70 | 680 | 147.0 | 94.7 | 19.5 | 27.5 |
AAEB7575 | 75 | 720 | 154.0 | 113.5 | 23.5 | 34.1 |
AAEB8080 | 80 | 720 | 154.0 | 113.5 | 23.5 | 34.1 |
