Festool Worktop Routing Template (204219)

Festool Worktop Routing Template (204219)

SKU:

$826.00 ex. GST
$826.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100
View full details

Precise joining.

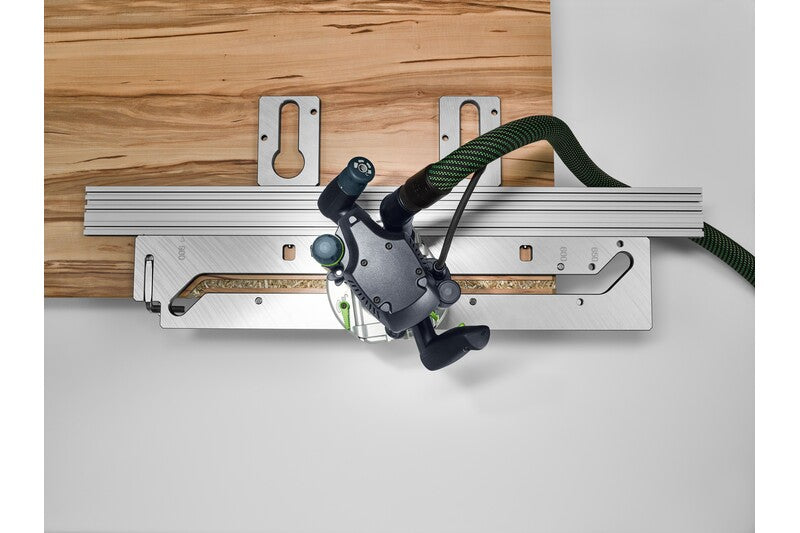

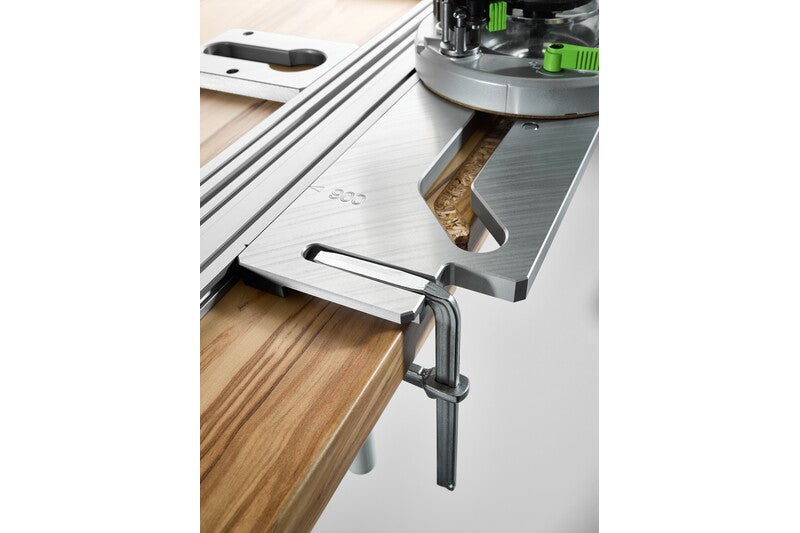

The APS worktop template makes flush connections of wooden panels at a 90° angle simple. The template is permanently fixed to the integrated clamp and thus enables precise results – even when the router passes several times along a single groove.

  • Robust routing template made from aluminium
  • For corner and panel joints with fixed fence with panel depths of 600 and 650 mm or, if moved, up to 900 mm
  • Additionally with two routing templates that can be freely positioned for making recesses for conventional fittings on the underside of panels
  • Panel depths greater than 900 mm also possible using extension profiles
  • For groove cutters with 14 mm diameter and copying rings with 30 mm diameter, recommended for OF 2200/1400 router
  • for diameter of cutter 14 mm and copying ring 30 mm



Main applications

  • Corner connector in the worktop area
  • For panel joins

Technical Data

Technical data
Dimensions (L x W x H)
1 000 x 380 x 16 mm
Panel depth with corner joints, without adjustment
600/650 mm
Panel depth with corner joints, with adjustment
900.00 mm
For worktop connectors, bolt length
65/150 mm

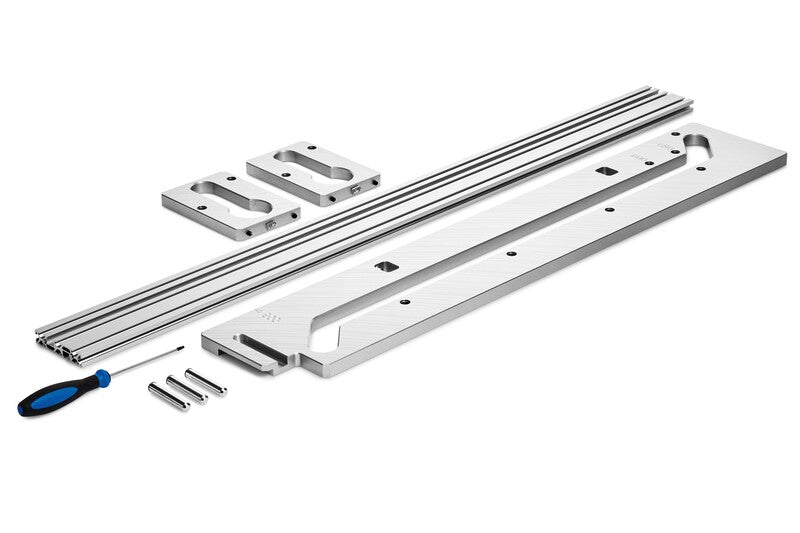

Items included

    • corner connection template
    • profile MFS-VP 1000
    • 3x Bolt
    • Screwdriver
