Festool

Festool TS 75 EBQ-Plus Plunge Saw + FS 1400 Rail (561512)

Festool TS 75 EBQ-Plus Plunge Saw + FS 1400 Rail (561512)

SKU:

Regular price $1,694.00 ex. GST
Regular price $1,848.00 Sale price $1,694.00 ex. GST
Sale Sold out

Free Shipping on Orders Over $100

View full details

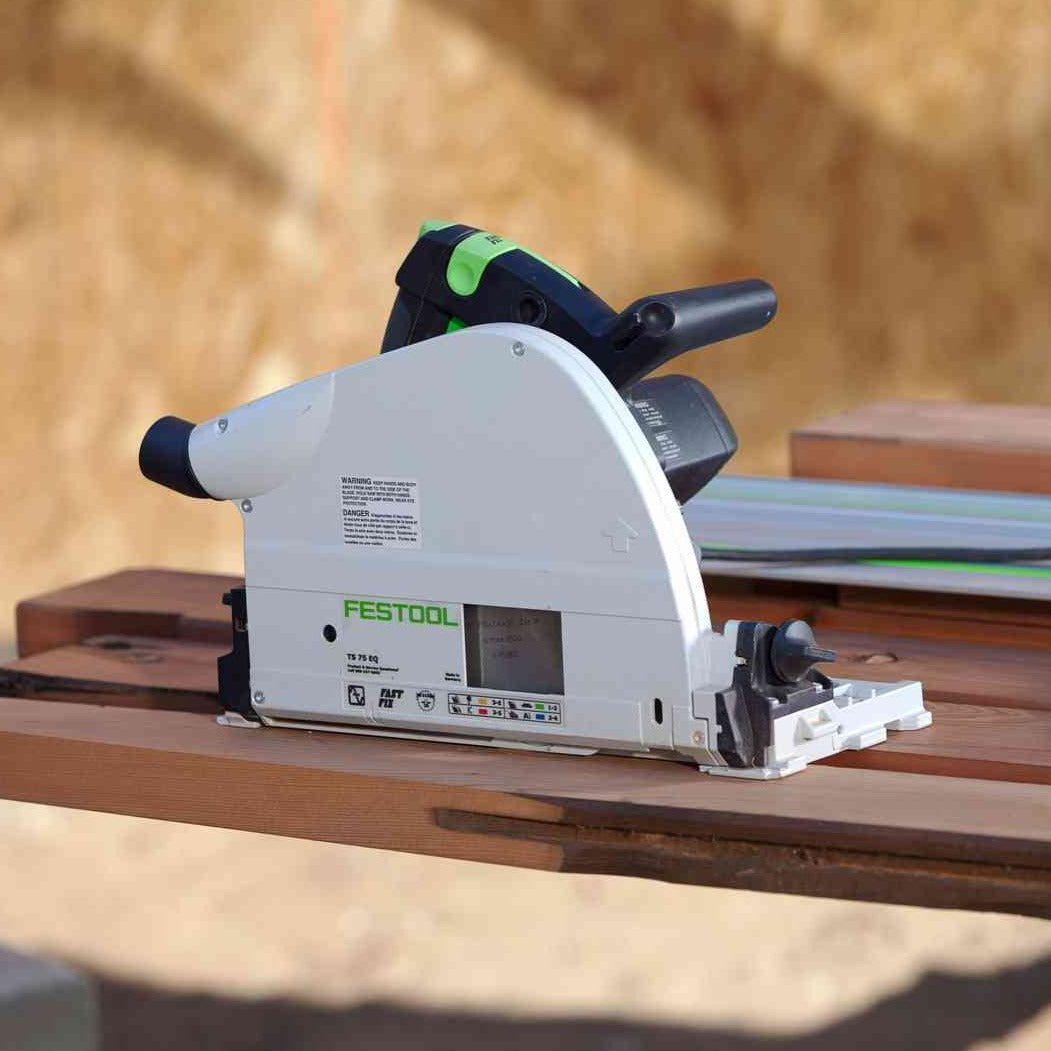

Festool TS75 Plunge Cut Track Saw & 1.4 Metre Rail:

For fast, straight cuts with repeatability and accuracy. The Festool TS75 is ideal for cutting through up to 75mm thick timber, AAC panel, fibre cement board, aluminium composite and much more. With a Festool or similar dust extractor, the TS75 is capable of making near-dustless cuts.

Fast = Efficient:

With a 1600 Watt tool power, the TS75 can spin from 1350 rpm all the way up to 3550 rpm allowing the saw to slice through materials up to 75mm thick with impressive speed, meaning you get more done faster.

Versatile in Material:

The TS75 saw can be equipped with a multitude of different blades for different materials, and with the Festool FastFix blade change system and on-tool hex key storage, changing blades is a breeze. All you have to do is simply lift the fast-fix lever, plunge the saw and un-fasten and replace the blade.

Specialty TS75 Blades:

Hardies / Fibre Cement
AAC Panel (Autoclaved Aerated Concrete Panel) / Hebel
Aluminium & Plastics
Laminate

Features:

Huge Depth of Cut:

At 75mm (2 3/4) inch depth of cut, the TS 75 can power through thick stock or multiple sheets at once with ease.

Spring Loaded Riving Kinfe:

Spring-loaded riving knife (splitter) retracts into the housing during plunge cuts. The riving knife keeps the cut kerf open so that the material does not pinch the blade. This reduces the chance of kickback, leaving you in control of the operation.

MMC Electronics:

Variable speed allows you to match the speed of the saw to the material. The electronics also maintain a consistent speed under load, improving cut performance and protecting the saw’s motor from thermal and current overload.

FastFix Blade Change System:

Blade changes are easier and safer using the FastFix system. When engaged, the power switch and arbor are locked simultaneously. The saw is also locked into a position to facilitate easy arbor bolt removal.

Safe & Simple

Tool-less play setting on the guide rail
Quick-acting brake system for safe, convenient sawing
Attachable splinterguard for high-quality working results

Main areas of use:

  • Precise circular in materials up to 75 mm thick
  • Cutting house doors to length using guide rail and circular saw
  • Cutting and machining conservatory profiles
  • Cutting cable ducts to length cleanly and easily
  • Accurately cutting false floors to size
  • Cutting multilayered boards

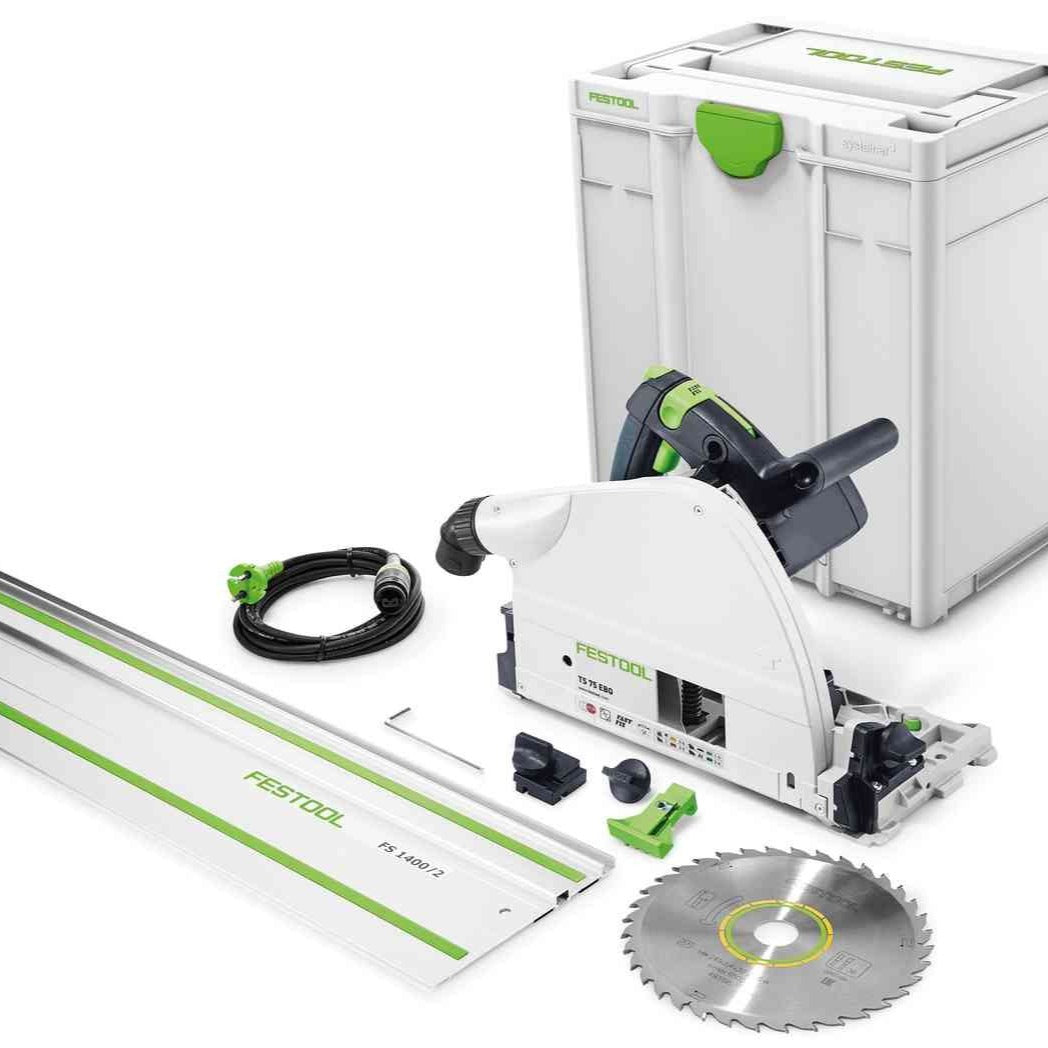

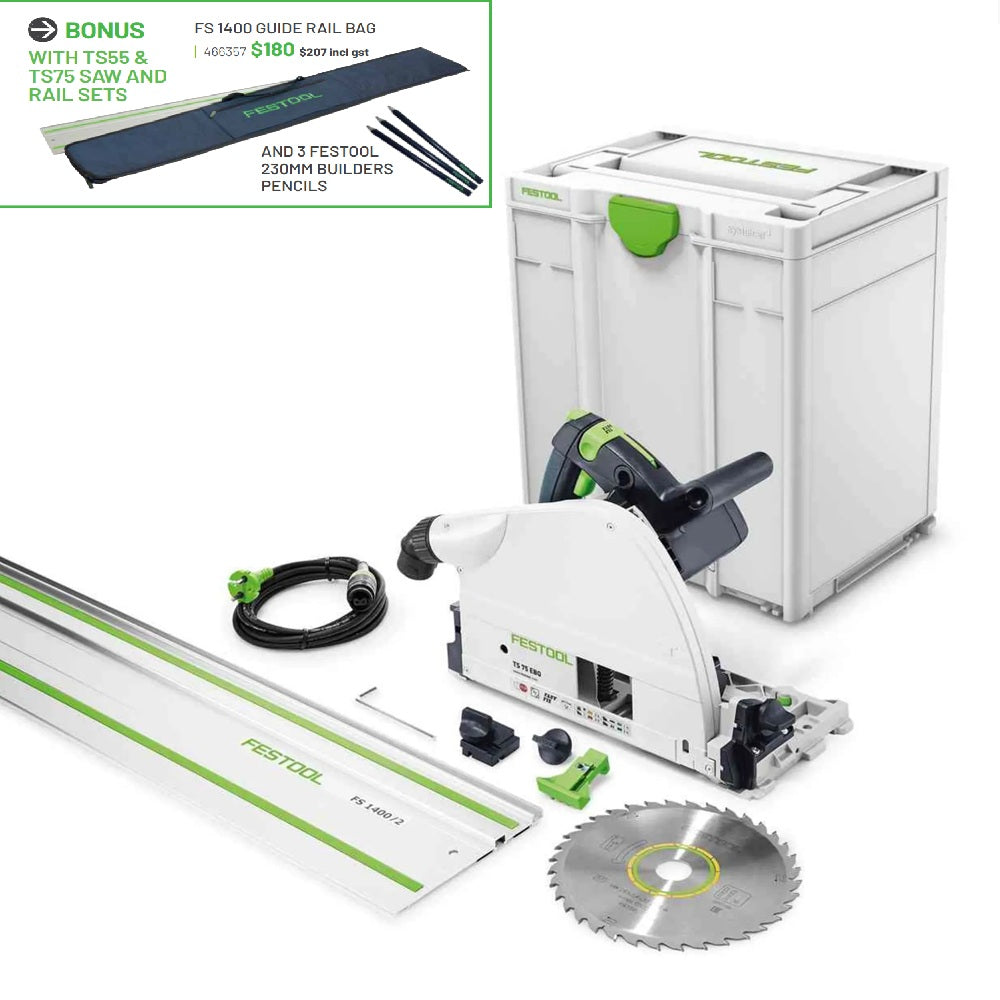

Items Included:

  • HW universal saw blade W 36 (493198)
  • set-back stop FS-RSP
  • operation tool
  • in systainer
  • 1 X FS 1400 guide rail

Technical data:

Max. cutting height: 45° 55 mm
Power consumption: 1600 W
Idle engine speed: 1350 - 3550 /min
Saw blade diameter: 210 mm
Angular range: 0 - 47°
Cutting depth: 0 - 75 mm
Cutting depth: 45° 55 mm
Dust extraction connection dia: 27/36 mm
Weight: 6.2 kg
