FESTOOL DFC 500 Q-PLUS CORDLESS DOMINO JOINER KIT

Connect with precision, stability, and versatility: the cordless DOMINO.

Every wooden joint has its perks. The DOMINO jointing system, which includes a cordless joining machine and DOMINO dowels, brings them all together. The unique pendulum routing motion of the DOMINO creates precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slotted and tenon joints with the flexibility of flat dowels. It's perfect for both delicate and sturdy pieces in the home and outdoors. Plus, the cordless version with its comfy spade handle gives you extra ease without any cables to worry about.

• Independent: 100% mobile with battery – whether you're in the workshop or on-site.
• Ergonomic: Work without fatigue thanks to the comfy handle.
• Precise: One-of-a-kind pendulum milling principle for accurate, effortless work.
• Quick and easy: Built-in stop pins for repeating dowel placement.
• Stable: Super stable and twist-proof joints thanks to the unique shape of the DOMINO dowel.
• Versatile: DOMINO plugs come in various sizes from 4 x 20 mm to 10 x 50 mm and in two types of wood for indoor and outdoor use.
• Sorted: The routing depths are just right for the dowel lengths and panel materials.
• Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again.
• System: Accessories are a perfect fit for the whole DOMINO system.

Performance features

Antistatic function

Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

CLEANTEC

Integrated bayonet fitting as the connecting element between the extractor and the tool.

•

FastFix

Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.

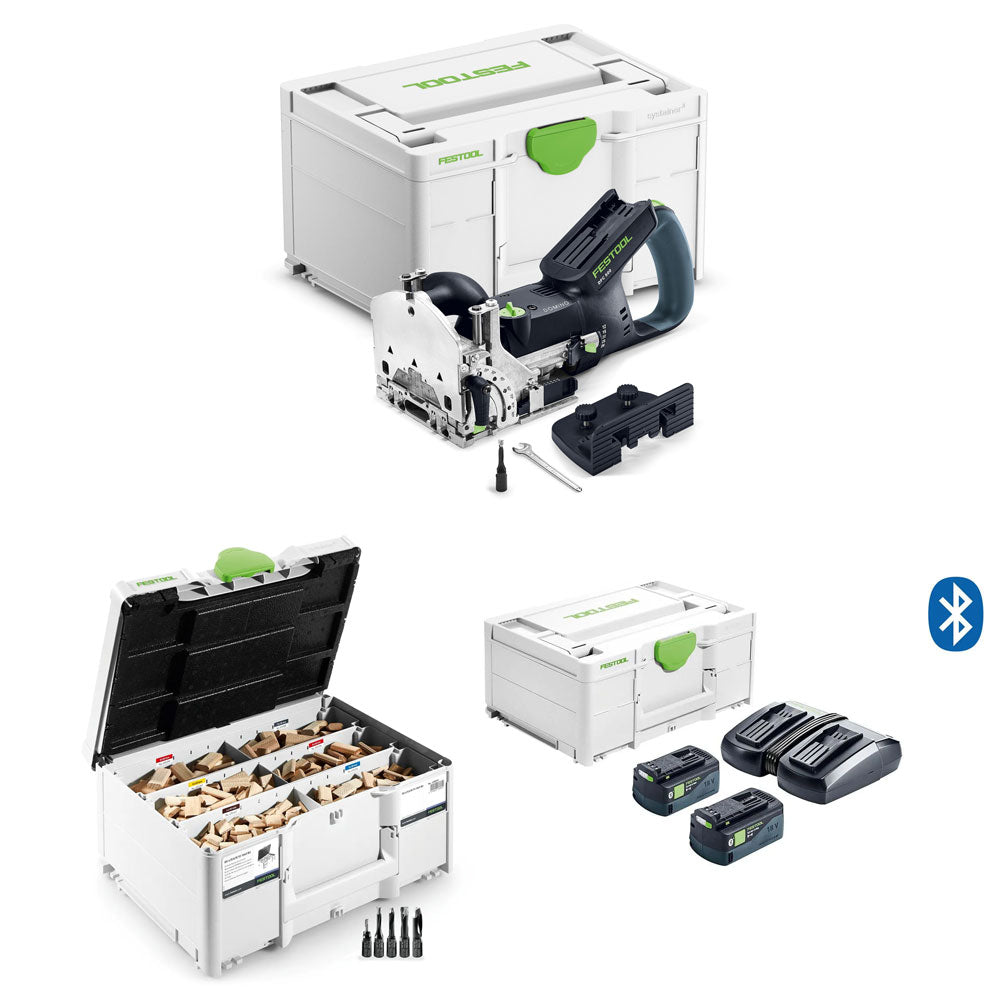

Items Included:

• DOMINO cutter Qty 6 : D4, D5 X 2, D6, D8, D10
• T-Loc Systainer 2 Case with Dividers - 497703 Qty 450: 4 mm x 20 mm Domino Beech - 495661 Qty 255: 5 mm x 30 mm Domino Beech - 494938 Qty 150: 6 mm x 40 mm Domino Beech - 494939 Qty 100: 8 mm x 40 mm Domino Beech - 494940 Qty 75: 8 mm x 50 mm Domino Beech - 494941 Qty 60: 10 mm x 50 mm Domino Beech - 494942
• DOMINO cutter D5
• support bracket
• DFC 500 Operation tool
• in SYSTAINER SYS3 M 237
• 2 x 5.0 Amp Batteries
• 1 x TCL 6 Duo Charger

Technical data:

• Idle engine speed : 18 500 min⁻¹
• Depth stop for routing depth : 12, 15, 20, 25, 28 mm
• Max. routing depth : 28.00 mm
• DOMINO groove cutter diameter : 4, 5, 6, 8, 10 mm
• Routing height adjustment : 5 - 30 mm
• Mitre routing : 0 - 90 °
• Dust extraction connection diameter : 27 mm
• Drive type : Cordless
• Product weight without accessories : 3.40 kg
• Battery voltage (rated voltage) : 18 V

Festool DF 500 Q-Plus Domino Joiner - Panel Joints:Festool DF 500 Q-Plus Domino Joiner - Mitre Joints:
