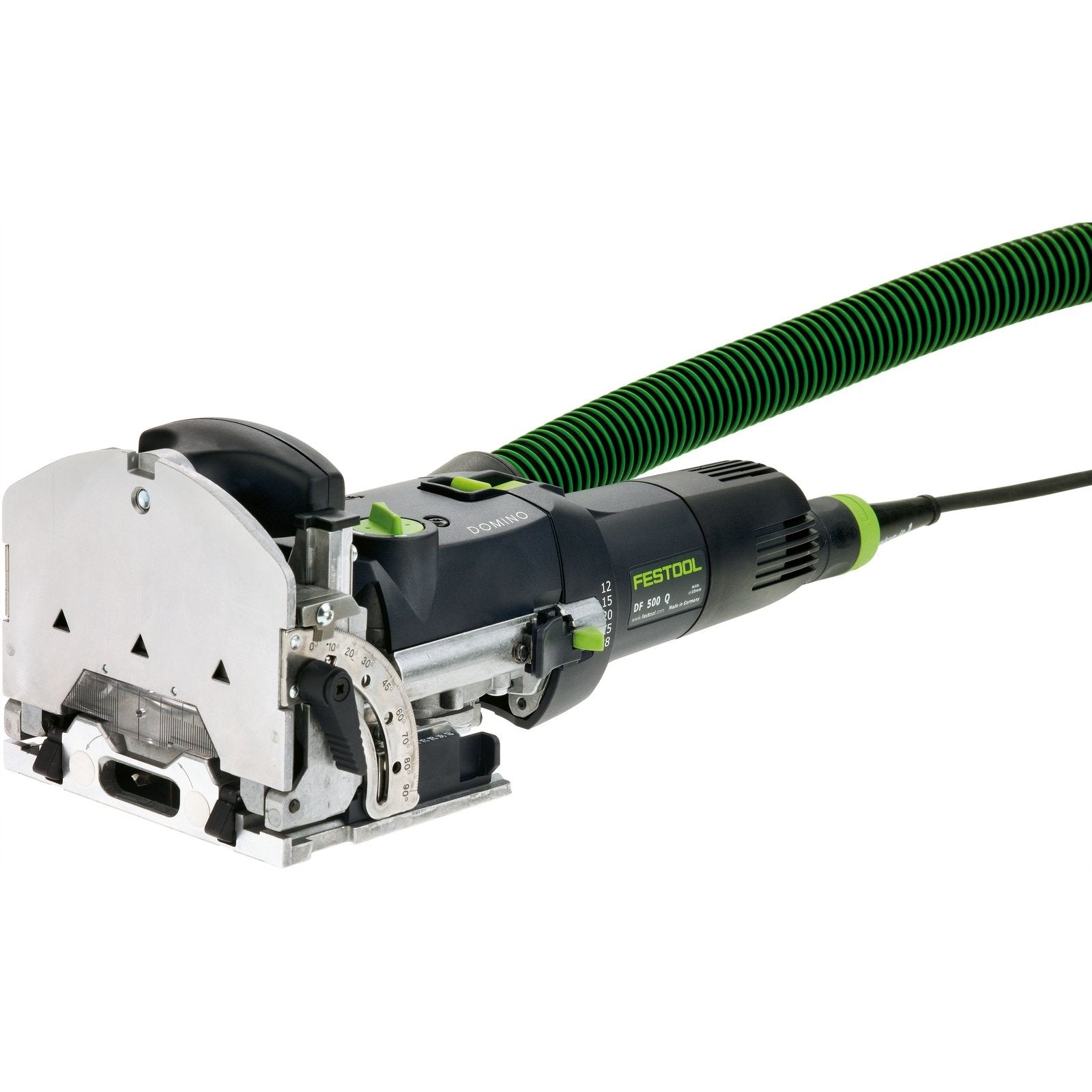

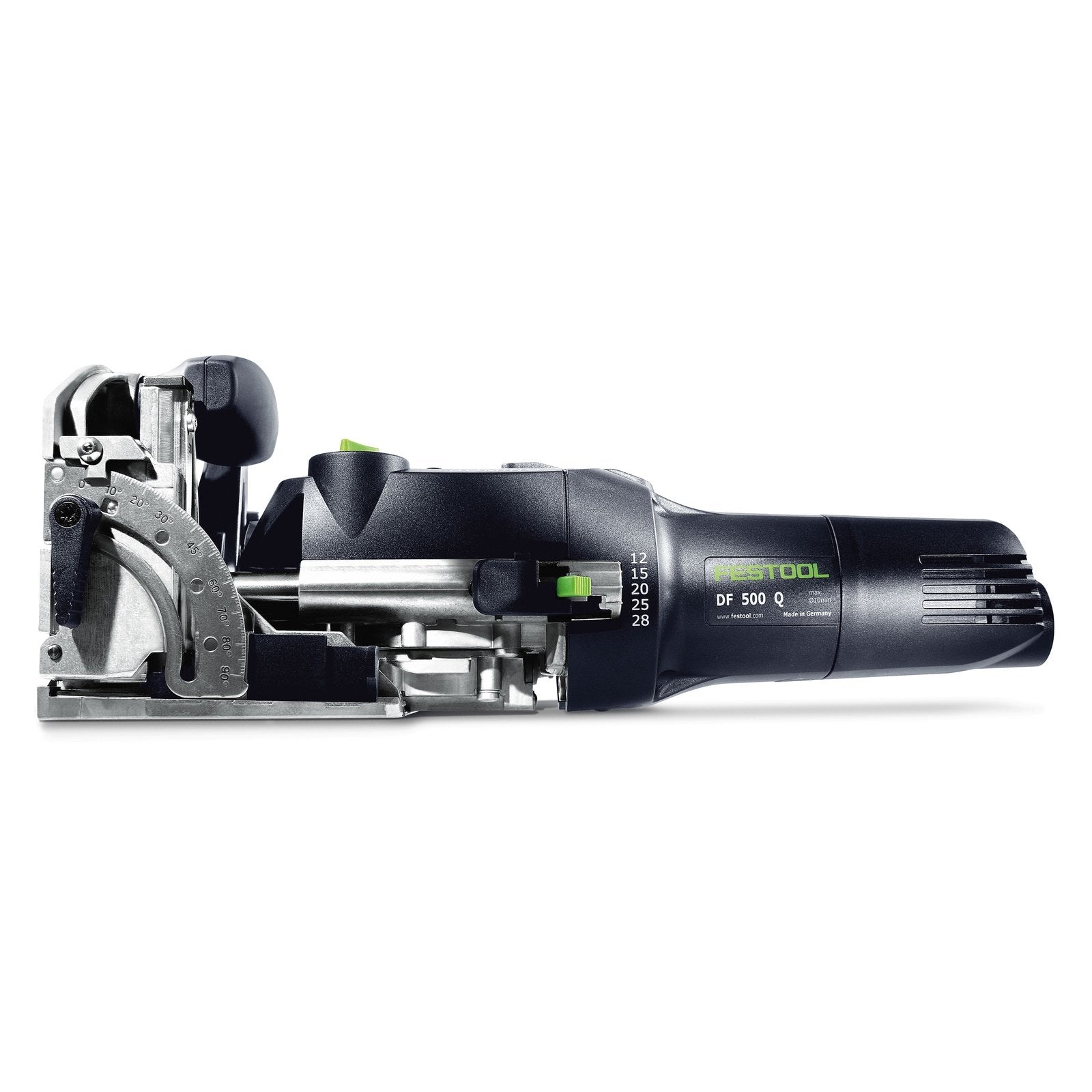

FESTOOL DF 500 Q-PLUS DOMINO JOINER

More precise joints

• Diverse use with dominos from 4x20 mm to 10x50 mm
• Patented routing principle unique to hand-held machines for accurate work with no kickbacks
• Stops that are quick and easy to adjust, for accurate results
• Ergonomic shape for ease of operation in any position
• Rotation-proof joint with DOMINO dowels providing maximum stability
• System accessories compatible with both DOMINO jointers

Main areas of use:

• Furniture manufacture
• Shop fitting/Interior fitting
• Window construction
• Exhibition stand construction
• For panel joins
• For frame and rack joints

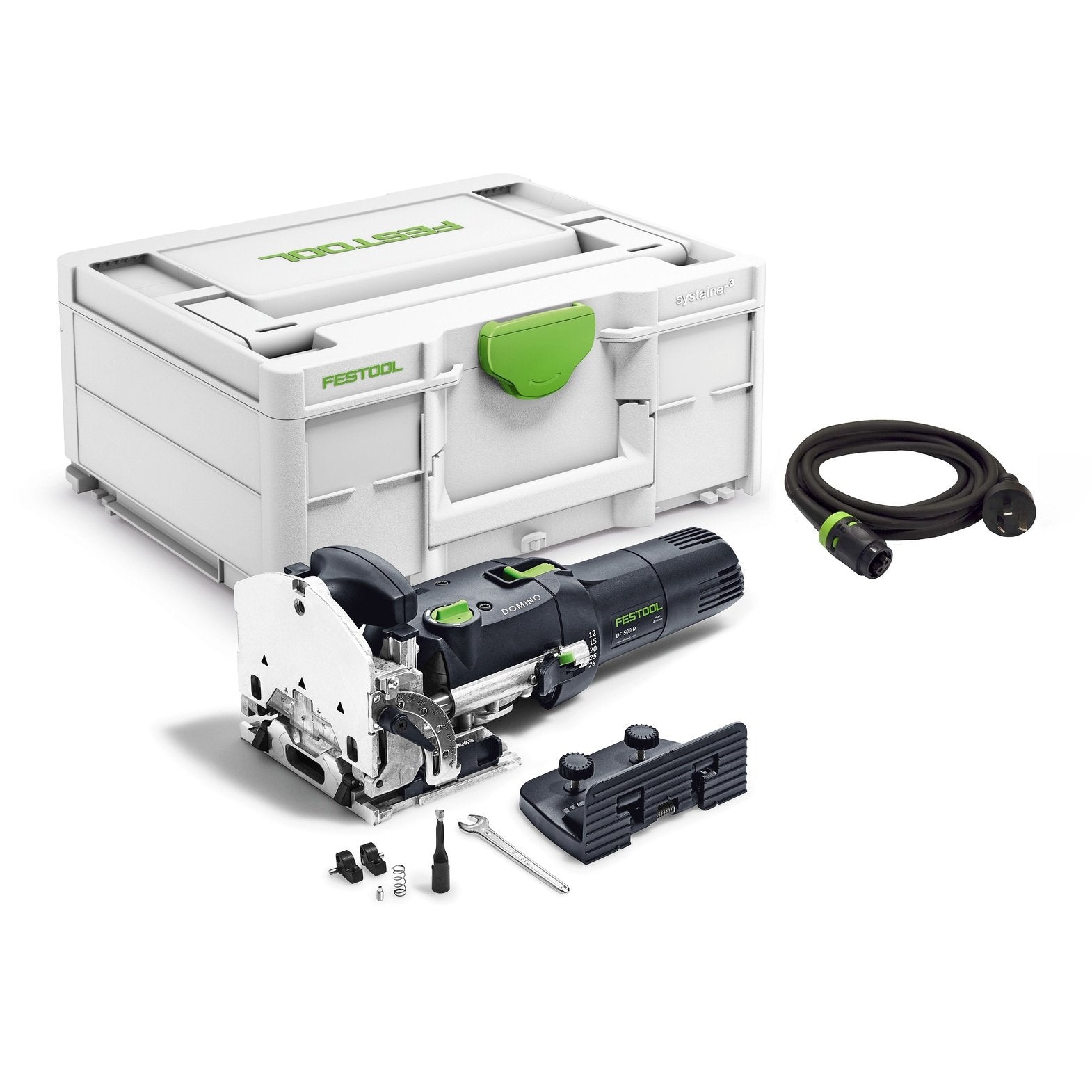

Items Included:

• DOMINO cutter D5
• support bracket
• operation tool
• in SYSTAINER SYS 2 T-LOC

Technical data:

• Power consumption: 420 W
• Idle engine speed: 25500 / min
• Depth stop for routing depth: 12, 15, 20, 25, 28 mm
• Max. routing depth: 28 mm
• DOMINO slot cutter diameter: 4, 5, 6, 8, 10 mm
• Routing height adjustment: 5 - 30 mm
• Mitre routing: 0 - 90°
• Dust extraction connection diameter: 27 mm
• Weight: 3,2 kg

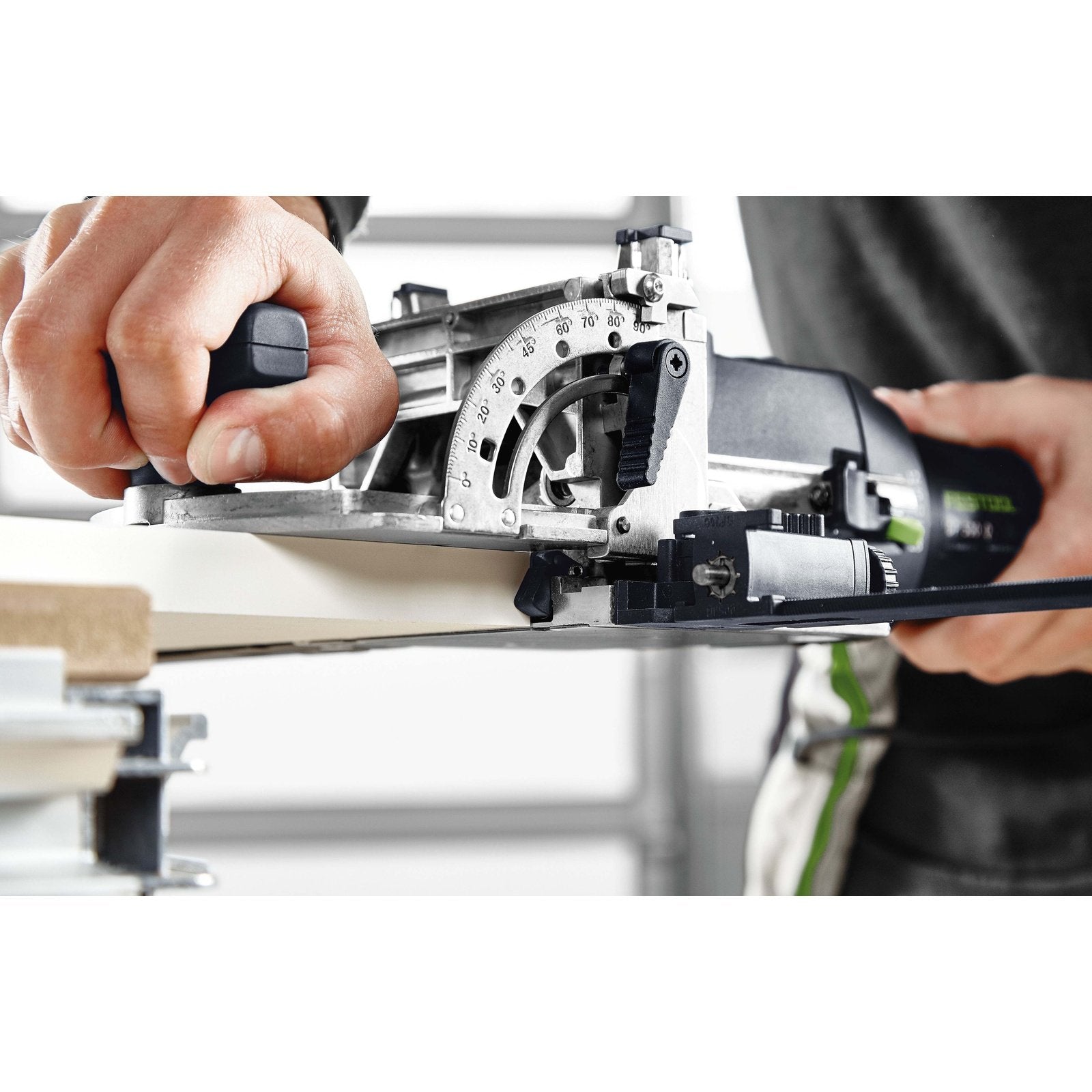

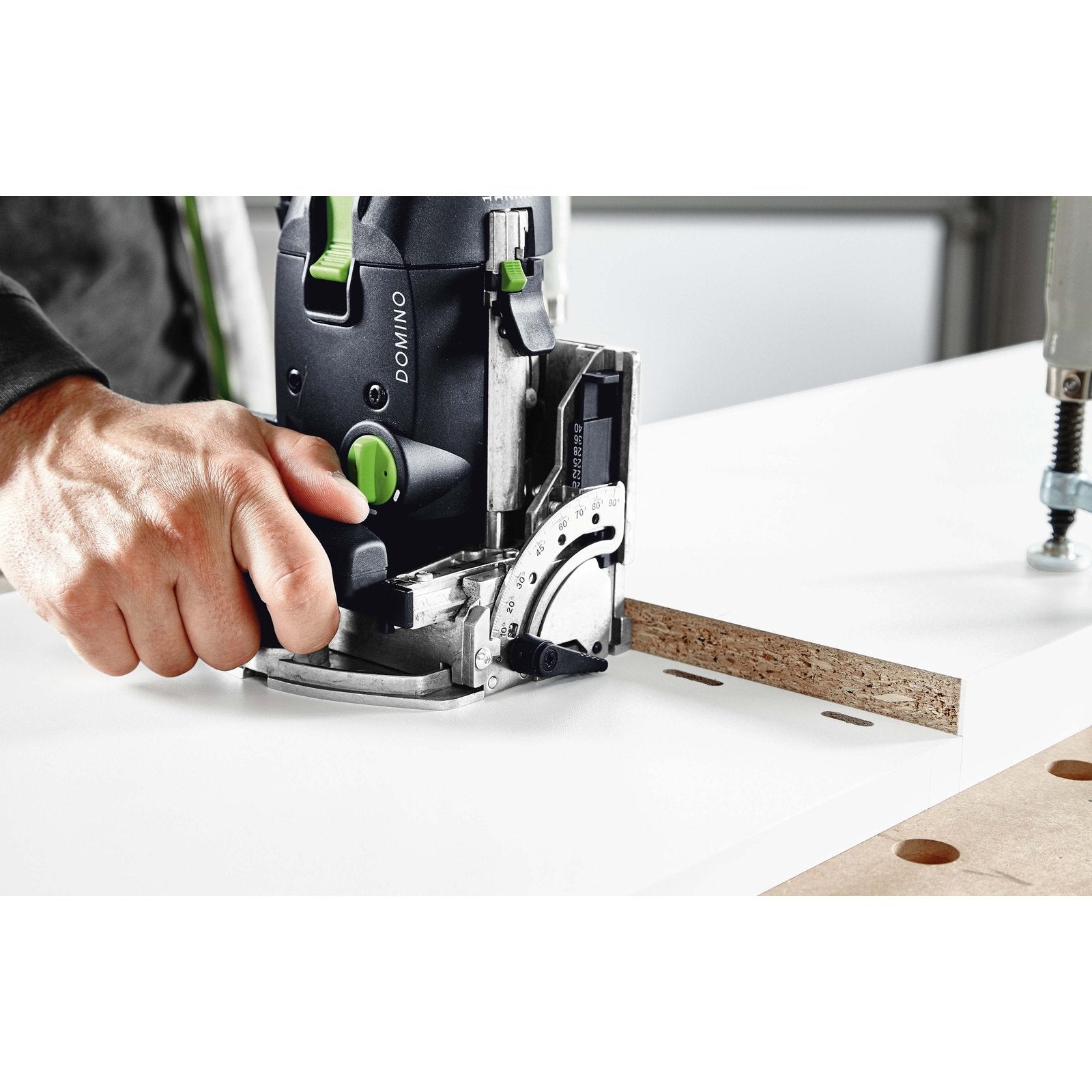

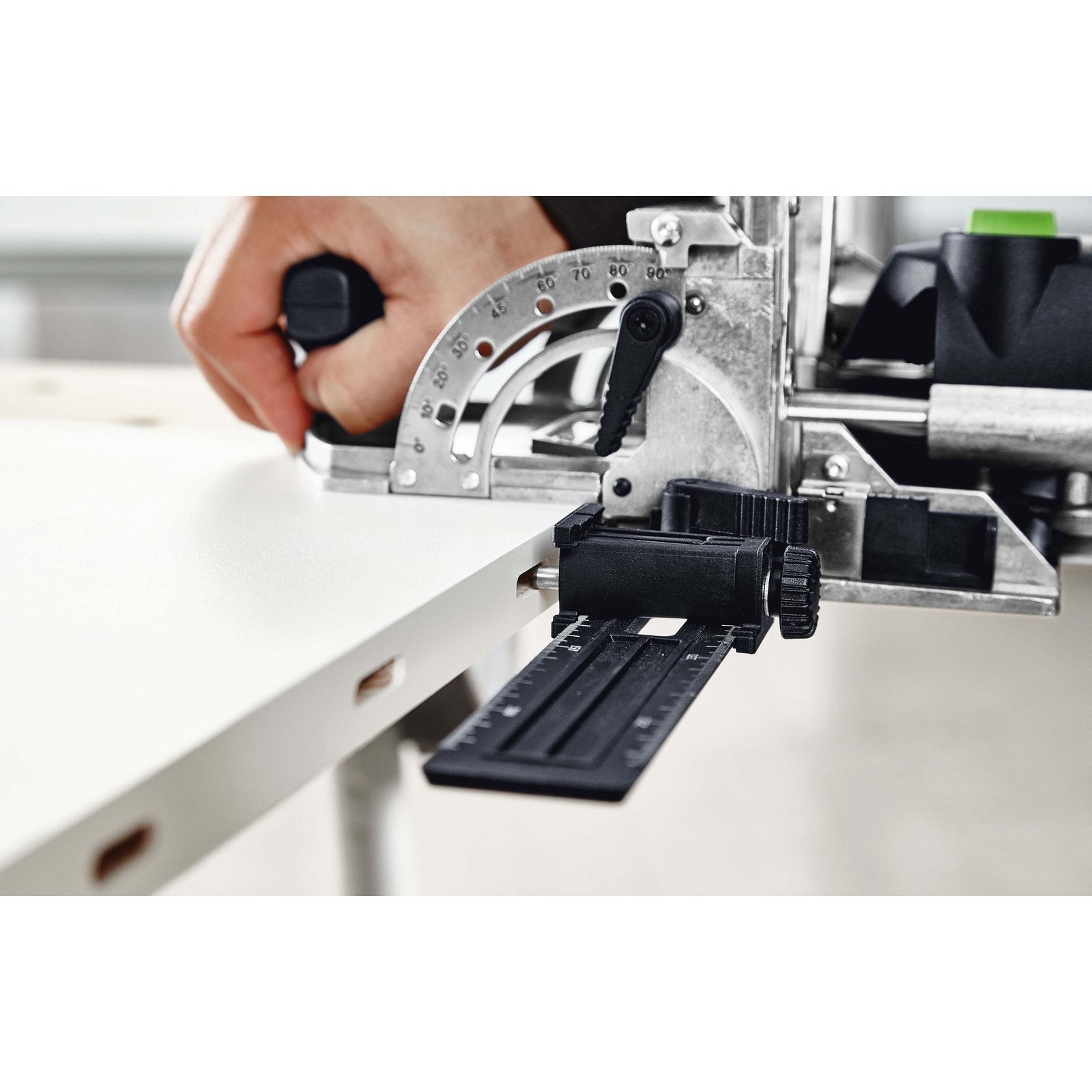

Festool DF 500 Q-Plus Domino Joiner - Panel Joints:

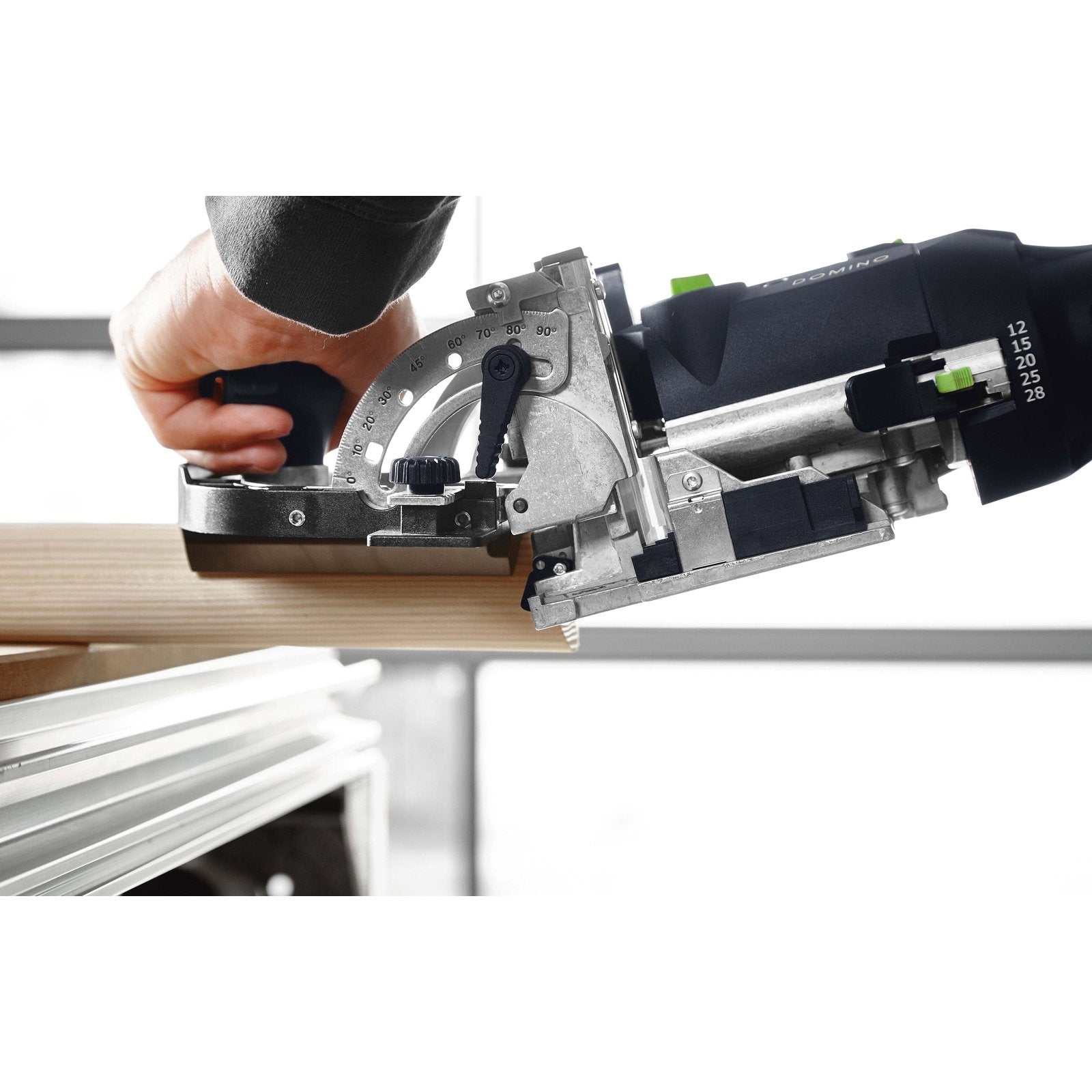

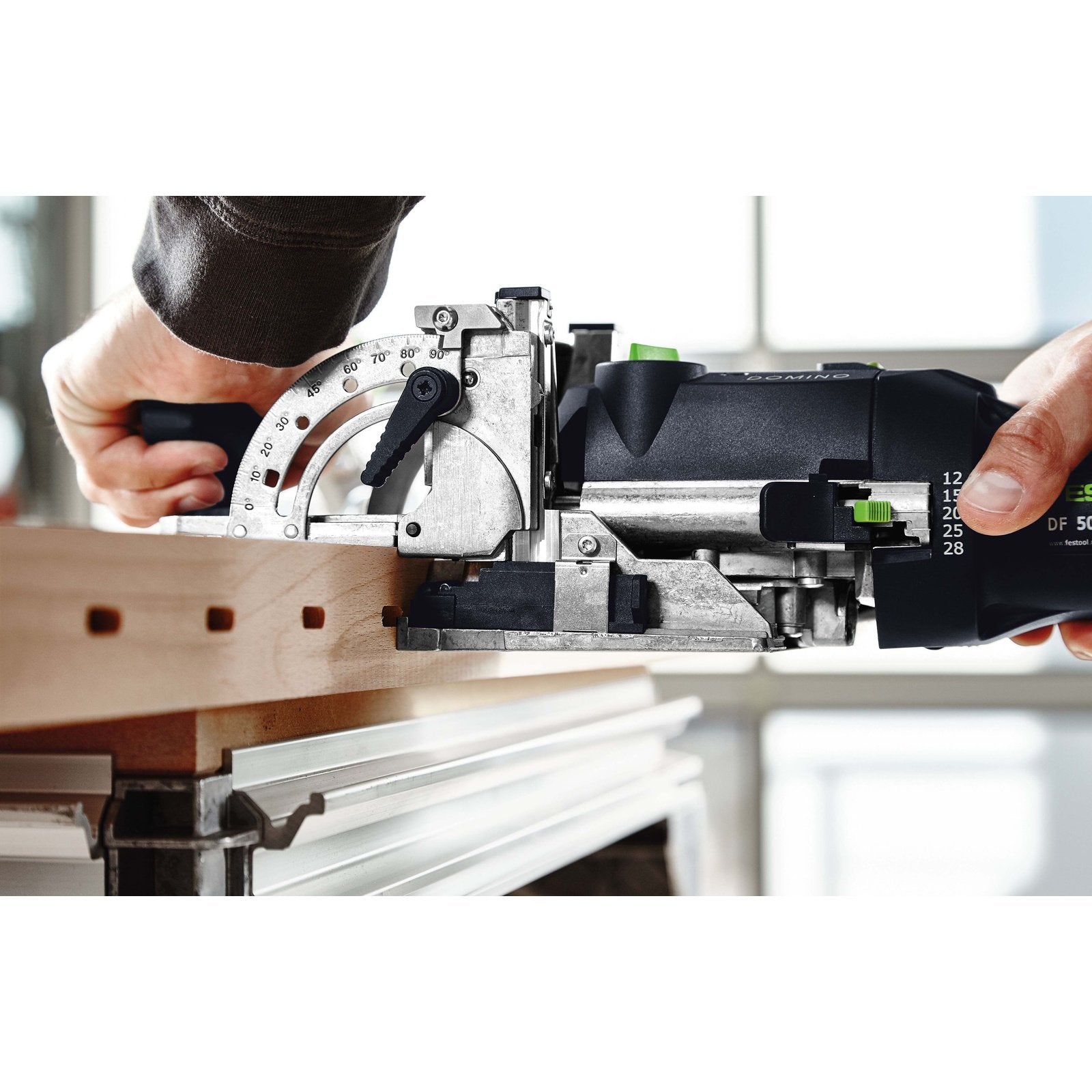

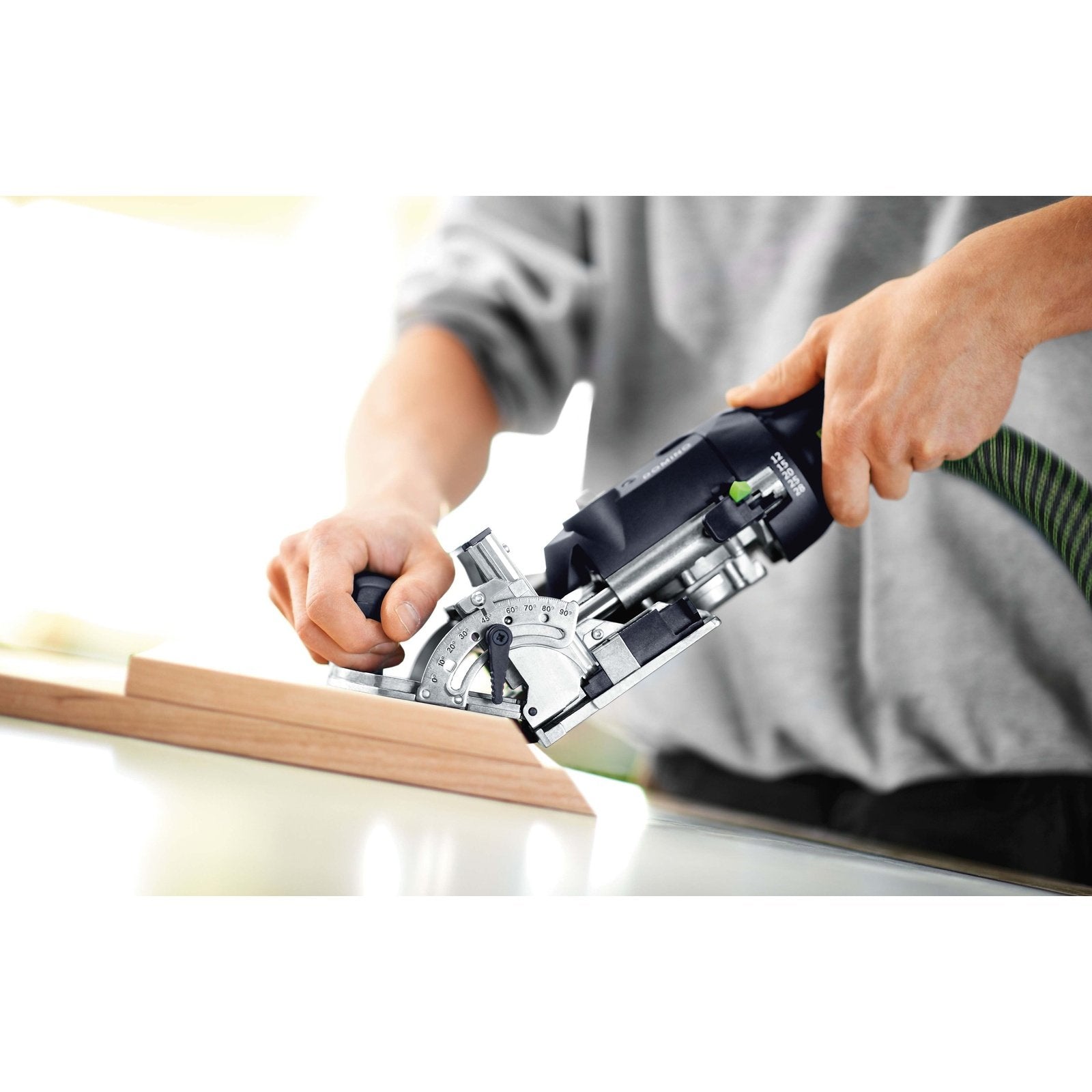

Festool DF 500 Q-Plus Domino Joiner - Mitre Joints:
