Swivel-mounted stationary edging.
The CONTURO is also suitable for working when stationary. It is simply inserted via this adapter plate in the MFT/3 multifunction table or a bench you have built yourself. Not only can you affix edging to straight edges or curves, but also oblique edges with an angle between 90° and 45° because the CONTURO can be tilted 90°–45° in the stationary unit.
- Flexible in use, the adapter plate can be built into a self-built table frame or into the MFT perforated board provided for it
- Continuously adjustable angle of 0–47°
- Allows the user to swivel the machine in the bench and position the workpiece horizontally during edging – for convenient and safe guidance, even with larger objects
- Supplied sliding guides for guiding the workpiece safely
- Perfect edging overhang when using the supplied sliding guides
- Quick to install and remove the edge bander without tools
- Secure fixing of the machine with slide lock
- Additional roller as expansion of the pressure zone or for edging of complex shapes
- Adjustable guide rail adapter for exactly parallel feeding in of the panel when edging mitres, therefore the edge doesn't run off course
- Deflector that keeps the introduced edge away from the workpiece area
- Start button of the machine always ideally reachable
- for using the edge bander KA 65 as a bench-mounted machine

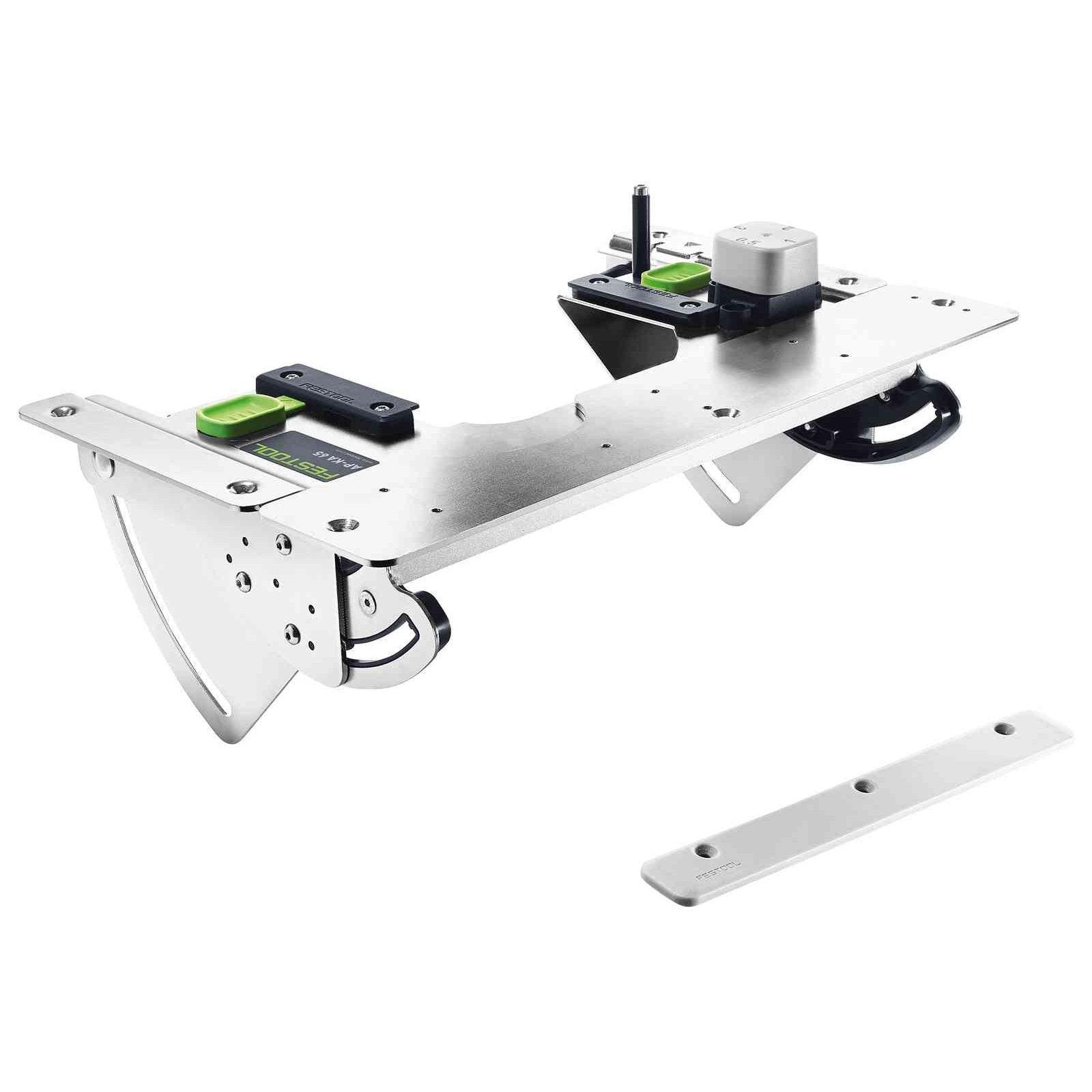

- adapter plate for installation in the MFT (with perforated board KA 65, order no. 500366) or a separate workbench
Dimensions length x width
254 x 420 mm
Min. installation height
150.00 mm
Cutting angle adjustment
0 - 47 °
