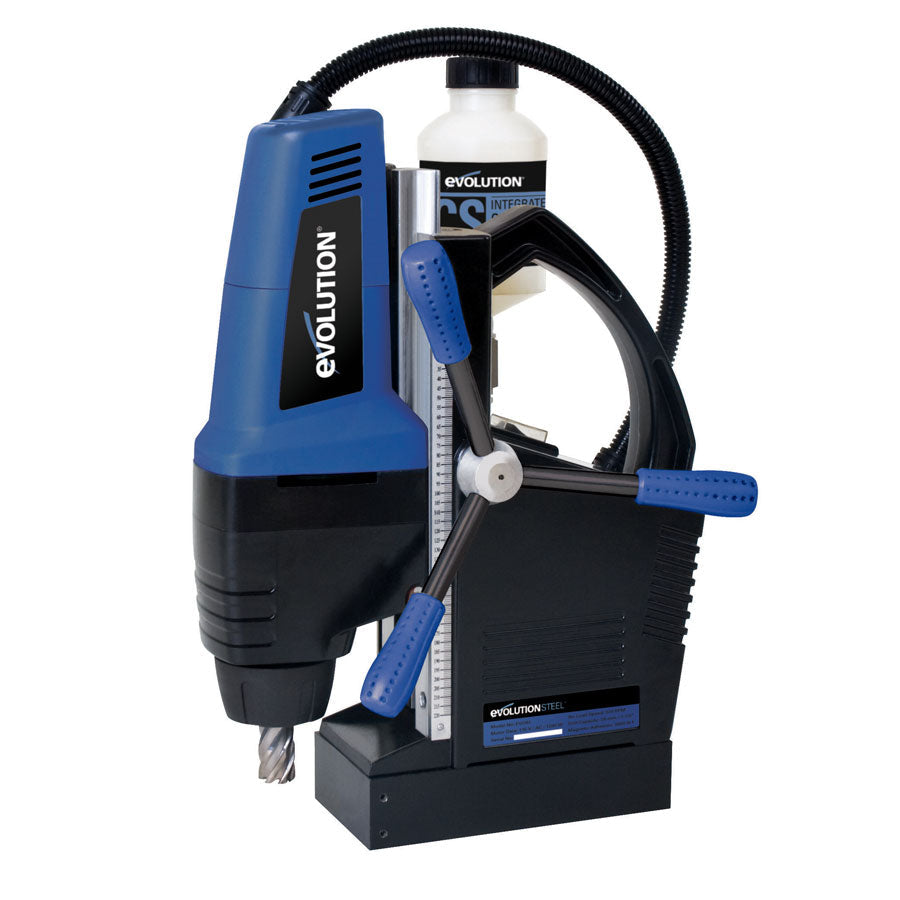

EVOLUTION EVO 42 MAG DRILL

Ideally suited to jobs both on and off site.

The fantastic EVO42 magnetic drilling system may be small, but it features a powerful 1200w motor, 42mm capacity, gravity oil feed and high magnetic adhesion.

• Lightweight and Fast
• Efficient 1200W / 50-60Hz Motor
• Coolant System

TECHNICAL DATA:

Motor 240v 50Hz 1200w
Maximum cutter diameter 42mm
Maximum cutting depth 50mm
No load speed 450min-1
Integrated coolant system
Recommended maximum duty cycle 30mins
Sound pressure level under load 90dB(A)
Maximum dimensions rack fully raised h x w x l 580mm x 320mm x 180mm
Minimum dimensions rack fully lowered h x w x l 340mm x 320mm x 180mm
Magnet dimensions h x w x l 40mm x 90mm x 180mm
Magnet adhesion 1500kg f
Cutter retainer internal diameter 19mm Weldon Shank
Oil coolant system
Hex keys 2mm, 3mm & 4mm
3 handles
1 shipping guard
Safety strap
HTA47 cutter adapter
HTA153 chuck & key
