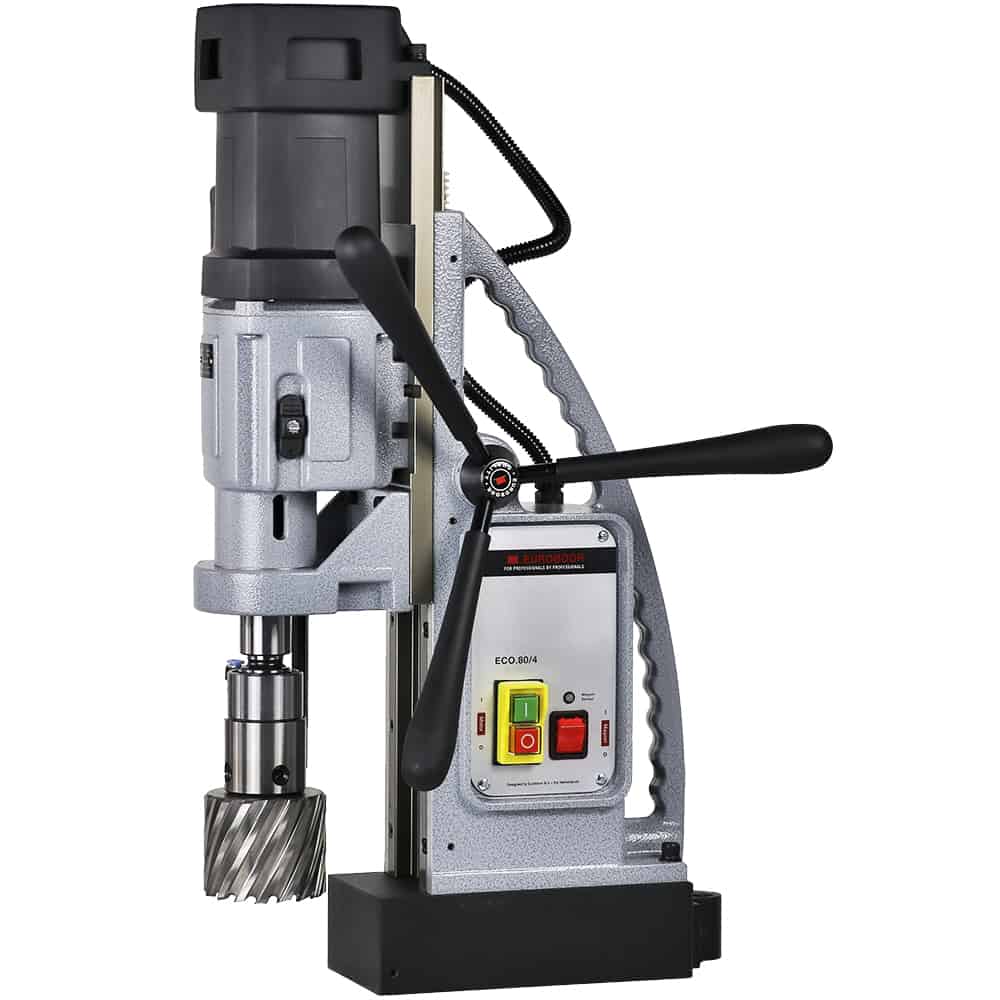

Euroboor ECO.80/4
Magnetic Drill Ø 7/16" - 3 1/8" / 28kg

The ECO.80/4 is a solid bruiser with Morse Taper 3 connection.

Thanks to its four-speed gearbox our portable Euroboor ECO.80/4 magnetic core drilling machine is able to tackle twist drilling tasks just as easily as big diameter annular cutter challenges. This magnetic core drilling machine has a Morse Taper 3 spindle with integrated tool cooling and lubrication for the best drilling performance.


This machine features:

 Four-speed gearbox

 MT 3 spindle with integrated tool cooling and lubrication

 Strong dual coil CNC machined magnet

 Overheat protection

Magnet LED Indicator


Technical data

Annular cutters                                  Ø 12 - 80 mm
Twist drills                                          Ø 1 - 31.75 mm
Countersinking                                  Ø 10 - 85 mm
Length                                               365 mm
Width                                                 310 mm
Height                                                510-710 mm
Stroke                                                260 mm
Weight                                               28.00 kg
Magnet (lxwxh)                                  220X110X64 mm
Magnetic force                                  3000 kg
Motor power                                     1700 W
Total power                                        1800 W
Speed                                                (1) 200 min-1
                                                          (2) 300 min-1
                                                          (3) 415 min-1
                                                          (4) 650 min-1
(no load/load)                                   (1) 150 min-1
                                                          (2) 200 min-1
                                                          (3) 275 min-1
                                                          (4) 400 min-1
Spindle                                              MT3 19.05 mm Weldon
Power source                                     220V 50/60 Hz
