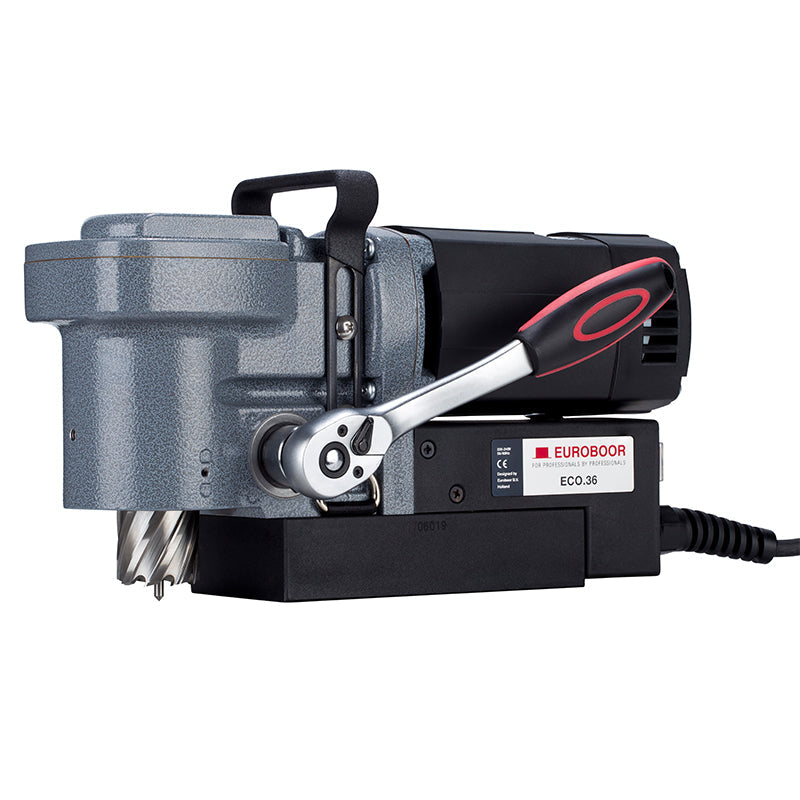

EUROBOOR ECO 36 LOW PROFILE MAG DRILL
EUROBOOR ECO 36 LOW PROFILE MAG DRILL
SKU:
Regular price
$2,078.00 ex. GST
Regular price
$2,235.00
Sale price
$2,078.00 ex. GST
Unit price
per
Free Shipping on Orders Over $100
Couldn't load pickup availability
DESCRIPTION
Very compact magnetic drilling machine, only 16.5cm in height. Perfect for drilling in spaces with limited height such as H-beams, steel structures, plates, profiles, etc.
The machine is equipped with LED light, a powerful magnet, overload protection and easy release/lock feed handle for both left and right operation.
Features:
- Very compact design
- User-friendly quick-connect cutter fitment system
- Detachable ratchet feed handle for left and right use
- Removable and slidable up and down safety guard
- Integrated motor cable
- Safety strap attachment integrated
- Easy release/lock feed handle, left/right operation
- Not suitable for drill chuck
TECHNICAL DATA:
Â
| ANNULAR CUTTERS: |
ø 12 - 36 mm |
|---|---|
| COUNTER SINKING: | ø 10 - 40 mm |
| TWIST DRILLS: | ø 1 - 13 mm |
| LENGTH: | 315 mm |
| WIDTH: | 135 mm |
| HEIGHT: | 165 mm |
| STROKE: | 40 mm |
| WEIGHT: | 10.3 kg |
| MAGNET (L x W x H): | 80 x 160 mm |
| MAGNETIC FORCE: | 1200 kg |
| MOTOR POWER: | 1050 W |
| SPEED (no load): | 700 minÂŻÂą |
| SPEED (load): | 400 minÂŻÂą |
| SPINDLE: | 19,05 mm (¾”) Weldon |
| AVAILABLE: | 220 - 240 V AC / 50-60 Hz |
