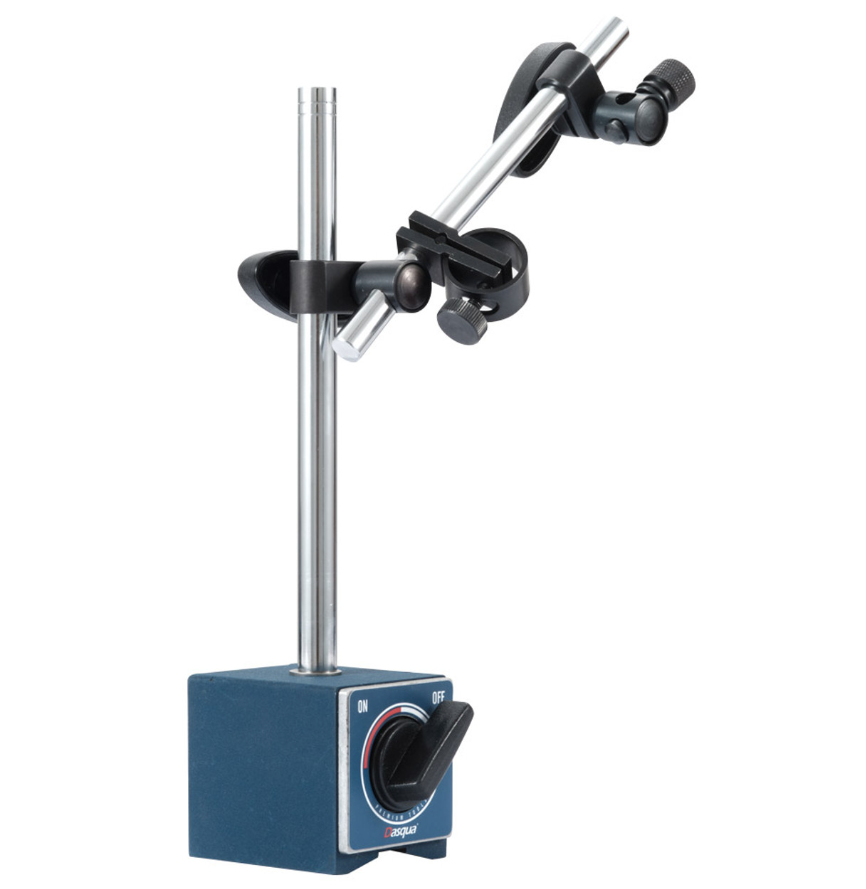

Dasqua Magnetic Base - Fine Adjustment DMB0004

Magnetic Base with Fine Adjustment

Holding Power: 60kg

Base: 60x50x55 mm

Main Pole: Φ12x176mm

Sub Pole: Φ10x150mm

Dia. of Clam Hold: Φ6/Φ8

Weight: 1.5kg

• 150° V-grooved base can be placed on the cylindrical surfaces as well as flat surfaces for easily fixing the indicators.

• Well selected ferrite permanent magnet with magnetic force greater than calibration value

• On/off switch for magnet, easy to move the base without the influence of magnetic force. CNC

• Solid structure with surfaces electroplated and end-faces

• With clamp holes of Φ4mm, Φ8mm, 3/8”, which satisfy the use of most indicators and test indicators

• With fine adjustment device, which is heat-treated to ensure stability and durability
