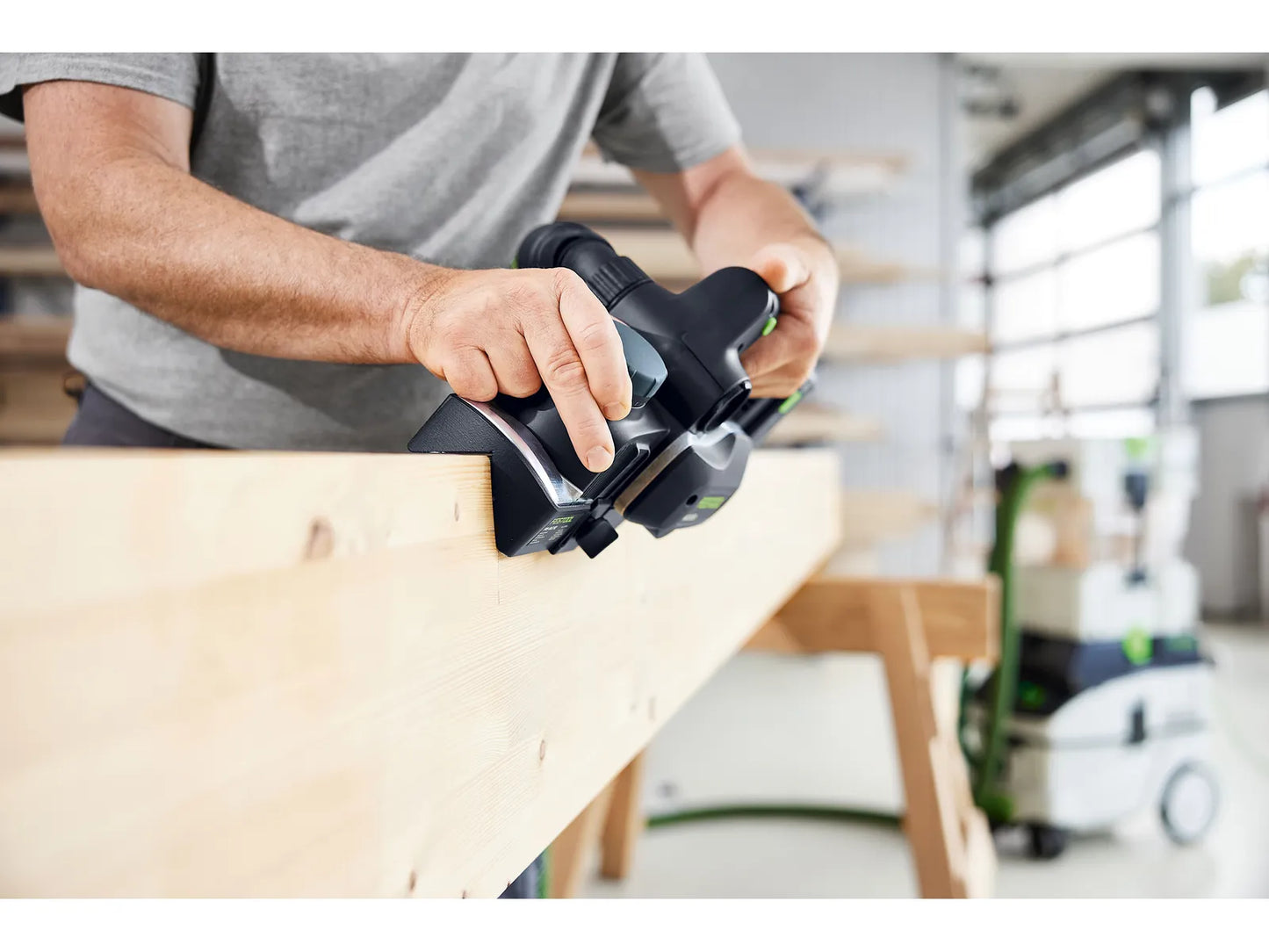

FESTOOL (578600) HLC 82 CORDLESS PLANER KIT

The long awaited Cordless Planer from Festool. HLC 82

• Fast: More speed and flexibility thanks to 2.5 mm maximum chip removal and 25 mm rebate depth.
• 18V Power: Best in combination with the 5.0 Ah Li-HighPower or the 8.0 Ah Li-HighPower battery pack for maximum runtime and maximum power.
• Flawless: Drawing cut and spiral blade for particularly fine surface quality.
• Versatile: Chamfering with three integrated 90° V grooves in the planer foot.
• For large-scale chip removal: Thanks to the two different extraction channels, the planer is also suitable for continuous applications with greater chip removal.
• Flexible: Extractor connector attachable on both sides for convenient working, the suction hose is not in the way.
• Convenient: Removable chamfer adaptor for fast and accurate creation of chamfers for beams and square timbers.
• Handy: Easy guidance of the planer on the workpiece thanks to ergonomic design.
• Quiet: The spiral blade reduces the noise level considerably.
• Precise: Chip depth adjustment (0–2.5 mm) on the dial – simple and convenient, easily accessible, even during planing.
• Compatible: With all Festool 18V battery packs (except Ergopack).
• Powerful: The brushless EC-TEC motor ensures constant power, even at maximum chip depth.
• Efficient: The quick-acting brake brings the planer to a standstill in less than two seconds, thereby minimising the risk of injury and damage to the workpiece.
• use only with HW 82 SD HLC 82 (577999) spiral blade
• HL 850 planing heads not compatible

Spir-O-Cut

single-edged planer head offers crucial advantages: No need to adjust cutting circle diameter after blade replacement, and oblique shearing for high surface quality

Antistatic function

Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

Quick-acting brake

For safe work when planing, sawing and routing.

EC-TEC motor

The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.

Electronic overload protection

Protects the motor with blocking tool.

CLEANTEC

Integrated bayonet fitting as the connecting element between the extractor and the tool.

Lithium-ion battery

Fitted with high-performance lithium ion battery pack.

Electronic monitoring of the temperature

Electronic temperature monitoring protects against engine damage.

Technical data:

Battery voltage (rated voltage) : 18 V

Planer shaft speed : 11,500.00 min⁻¹

Planing width : 82.00 mm

Planing depth : 0 - 2.5 mm

Max. rebate depth without stop : 25.00 mm

Max. rebate depth with stop : 23.00 mm

Dust extraction connection diameter : 36 mm

Product weight without accessories : 2.70 kg

Transport weight incl. accessories : 5.00 kg

Drive type : Battery

Contains

6 Article

Parallel side fence

PA-HLC 82/EHL 65

Rebate depth stop

FA-EHL

Chamfer adaptor

FNS-HLC 82

hex key, WAF 2,5

short chip channel

HLC 82 Tool in Systainer³

SYS3 M 237
